DA650 Pro Servo & Arms

Regular price $ 209.00
Regular price Sale price $ 209.00
Choose Size: DA 650 Pro Servo
SKU: ASADA650P
Regular price $ 209.00
Regular price Sale price $ 209.00

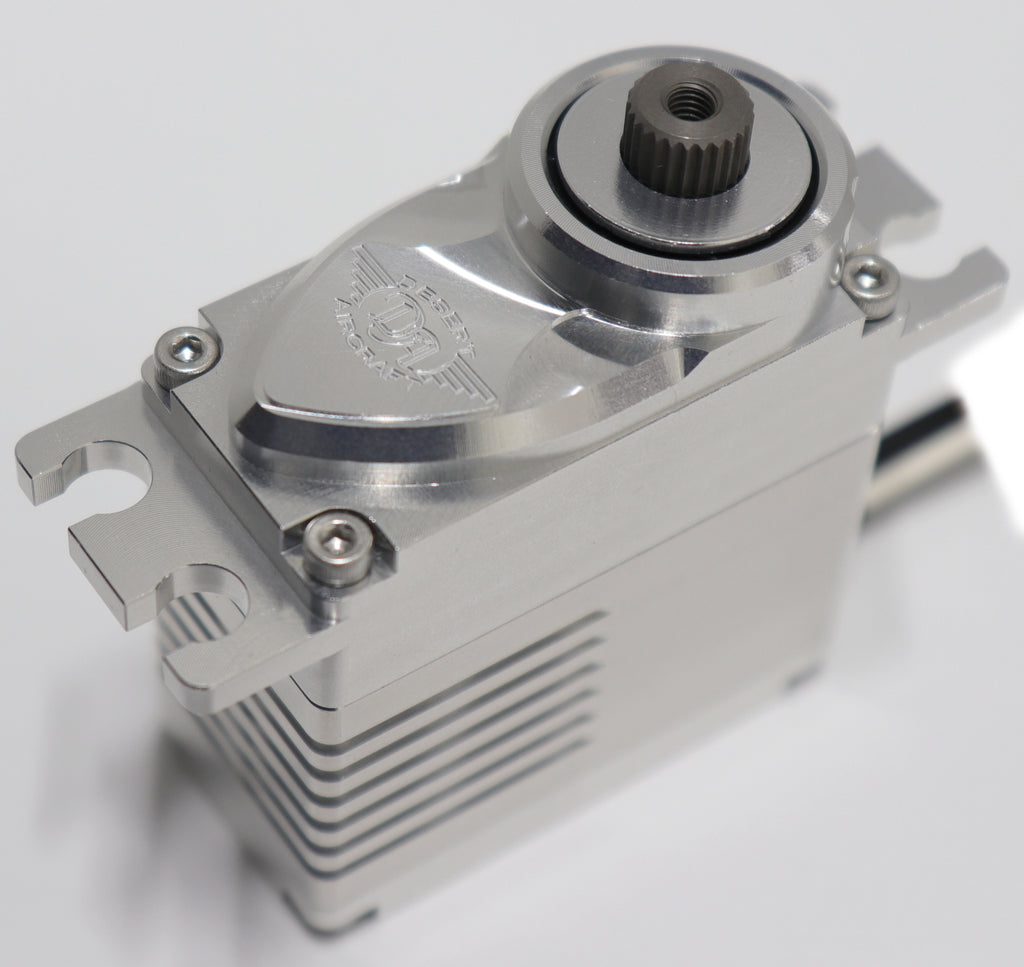

DA650PRO

High Performance Servo

  • Massive torque and high speed
  • Compatible with any radio using PWM control
  • XBus compatible allowing 120 to 180 deg travel
  • Slow start feature
  • Nitrided steel gears for resistance to heat, wear, corrosion, and fatigue
  • Special “B” gear (next to pinion gear) made from ULTEM with 572 deg heat resistance
  • Super high quality Japanese ball bearings
  • Ultra high performance brushless motor made in Japan
  • Oversize 7mm/T25 Spline (not compatible with standard T25)
  • 6061 billet aluminum case machined in Japan
  • Produced by Desert Aircraft Japan and RC Depot Japan
  • Torque:  833.2 oz @ 7.4v,  945.8 oz @ 8.4v
  • Speed: 0.10 sec/60 deg @ 7.4v, 0.09 sec/60 deg @ 8.4v
  • Neutral: 1500 u.Sec
  • MPU: 32 bit
  • Input Voltage: 4.8 – 8.5v
  • Weight: 3.0 oz , 86 g
  • Dimensions: 40.6mm x 20.0mm x 40.0mm

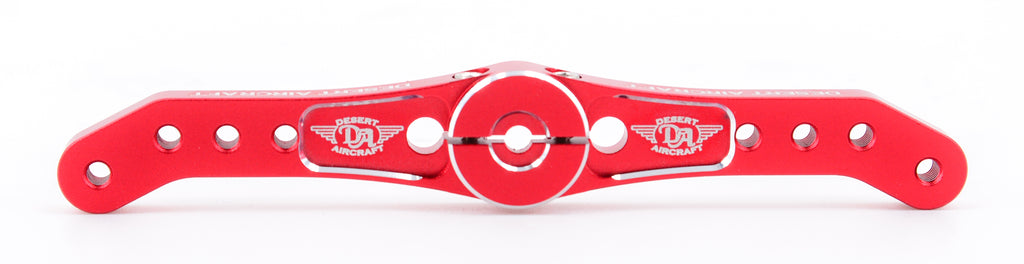

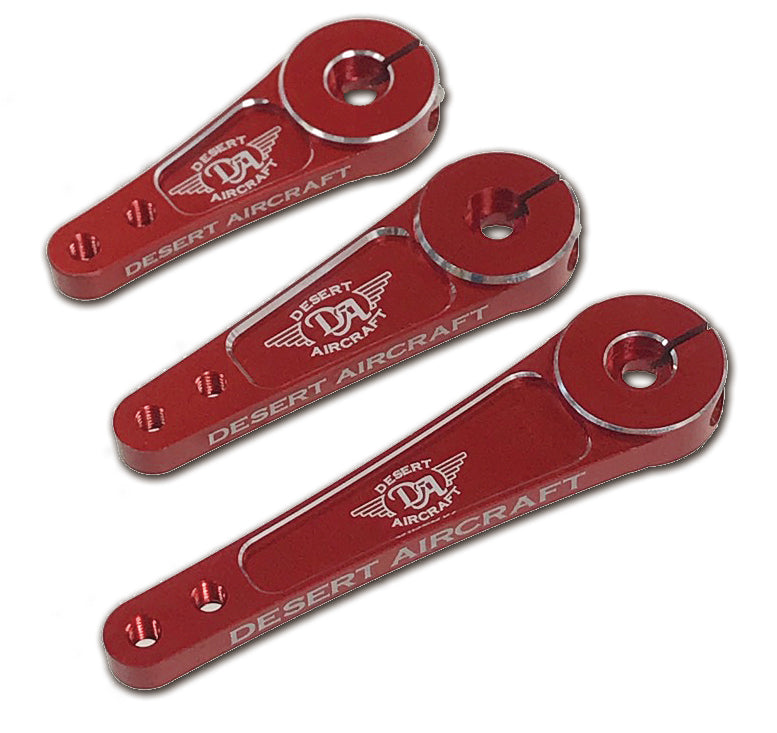

Proprietary Servo Arms for DA650pro and DA900pro ONLY (7mm/T25 Spline)



1.25”  4-40   $11.00

1.5”    4-40   $11.00

2”       4-40   $13.00



1.25”  M3    $11.00

1.5”    M3    $11.00

2”       M3    $13.00

DA650 & DA900 Proprietary 7mm T25 servo arms do not fit DA600 servos which use standard T23.
