DA600 Pro Servo & Arms

$ 189.00

At this time we are only offering standard ground shipping for website orders to the USA & Canada only.
All OTHER COUNTRIES please contact us for rates.
For faster USA shipping options, give us a call at 520-722-0607.

DA600PRO

High Performance Servo



  • Massive torque and high speed
  • Compatible with any radio using PWM control
  • XBus compatible allowing 120 to 180 deg travel
  • Slow start feature
  • Nitrided steel gears for resistance to heat, wear, corrosion, and fatigue
  • Special “B” gear (next to pinion gear) made from ULTEM with 572 deg heat resistance
  • Super high quality Japanese ball bearings
  • Ultra high performance brushless motor made in Japan
  • 6mm/T23 Spline
  • 6061 billet aluminum case machined in Japan
  • Produced by Desert Aircraft Japan and RC Depot Japan
  • Torque:  562 oz @ 7.4v,  638 oz @ 8.4v
  • Speed: 0.13 sec/60 deg @ 7.4v, 0.11 sec/60 deg @ 8.4v
  • Neutral: 1500 u.Sec
  • MPU: 32 bit
  • Input Voltage: 4.8 – 8.5v
  • Weight: 2.7 oz , 77 g
  • Dimensions: 40.6mm x 20.0mm x 40.0mm

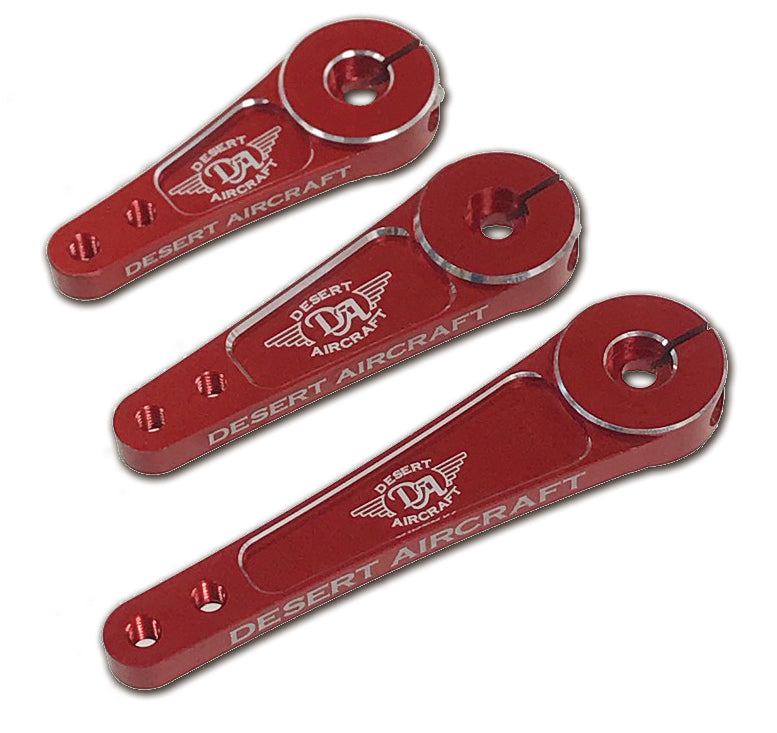

Servo Arms for DA600Pro and JR/DFA servos ( 6mm/T23 Spline )



1.25”  4-40   $11.00

1.5”    4-40   $11.00

2”       4-40   $13.00



1.25”  M3    $11.00

1.5”    M3    $11.00

2”       M3    $13.00

  • Dimensions: 1.61 x 0.78 x 1.57”, 40.6 x 20 x 40 mm

DA600 T23 servo arms do not fit DA650 & DA900 servos which use T25.
