DA100I (Inline)
Couldn't load pickup availability
The Inline Advantage
Some engines simply make power. The DA-100 Inline makes power with refinement. Built from the proven foundation of the legendary DA-100 opposed twin, it's engineered for 1/3-scale warbirds and sport aircraft where smoothness, reliability, and realism matter. Its two 50cc combustion events per revolution create a noticeably smoother-running engine than a conventional 100cc opposed twin, delivering silky throttle response, a broad torque curve, and the unmistakable soundtrack only an inline can produce. Because scale deserves more than "good enough."
***Engines will no longer come with a paper manual, but instead a QR code linking you to the manual. This will allow you to be able to pull up your manual on any electronic device. If you need a paper manual, please include that in your notes for your order.***
Specifications
- Displacement: 6.10 ci (100 cc)
- Output: 10.1hp
- Weight: 6.9 lbs (2.53 kilos)
- Length: 9.625 in (244 mm)
- RPM Range: 1,000 to 6,800
- Warranty: Three Years
- Bolt Circle: 29mm
- Prop Bolt: (6) M5x50mm
Features
- Four crankshaft bearings, with broad spacing between front bearings.
- Dual Four petal reed valves, side induction.
- Desert Aircraft, auto advance, electronic ignitions with Safe Start
- Dual Walbro Carburetors.
- Exclusive Desert Aircraft cylinders, pistons, and crankshaft.
- CNC milled, 7075 aluminum alloy crankcase.
- Aerobatic power curve.
Recommended Propellers
2-Blade
- • 26x12*
- • 27x10
- • 28x9.5†
- • 28x10 *Ideal Speed Propellers †Ideal Aerobatic Propellers
3-Blade
- 24x12W
- 25x12S*
- 26x12N†
- 26x12 *Ideal Speed Propellers †Ideal Aerobatic Propellers
Recommended Exhaust
- KS95 Series
- MTW 110 Series

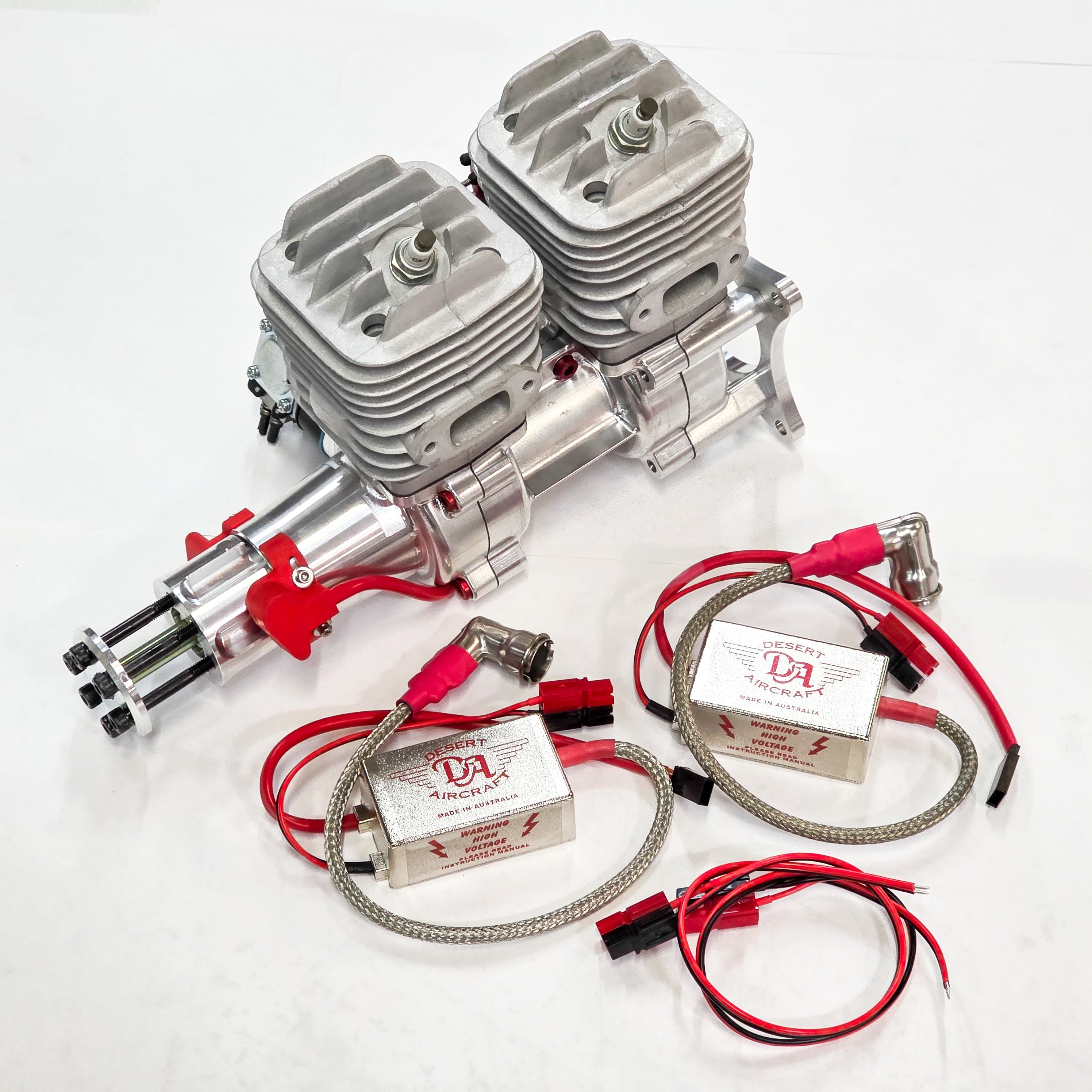

In The Box
- DA100 Complete With Carburetor
- 2 Single Ignition Modules
- 2 NGK CM6 Spark Plugs
- 2 Exhaust Gaskets
- 6 M5x50 Prop Bolts
- 1 Prop Washer
