DA-170

$ 1,958.00
$ 1,958.00
SKU: MDA170

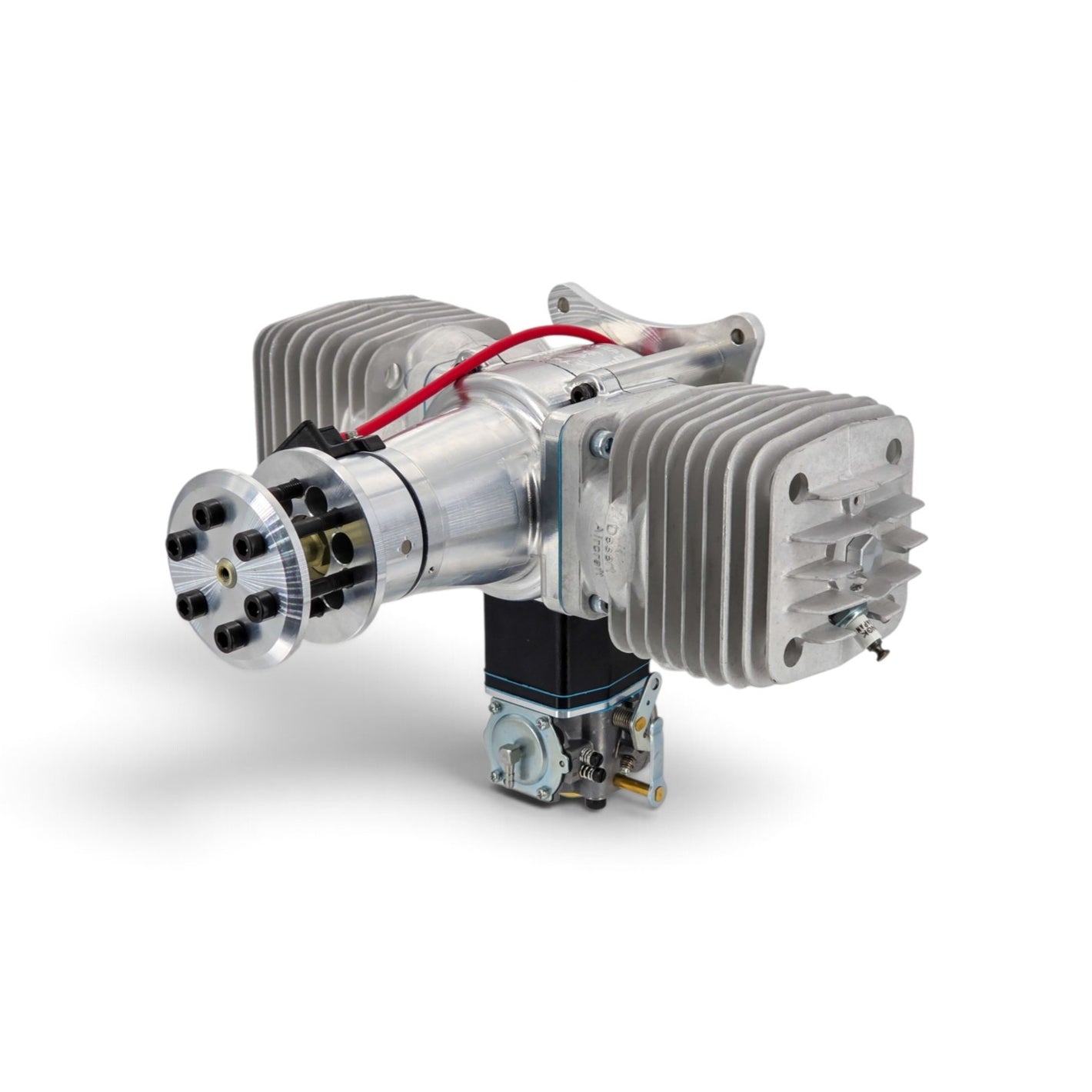

Desert AircraftDA-215
DA-215

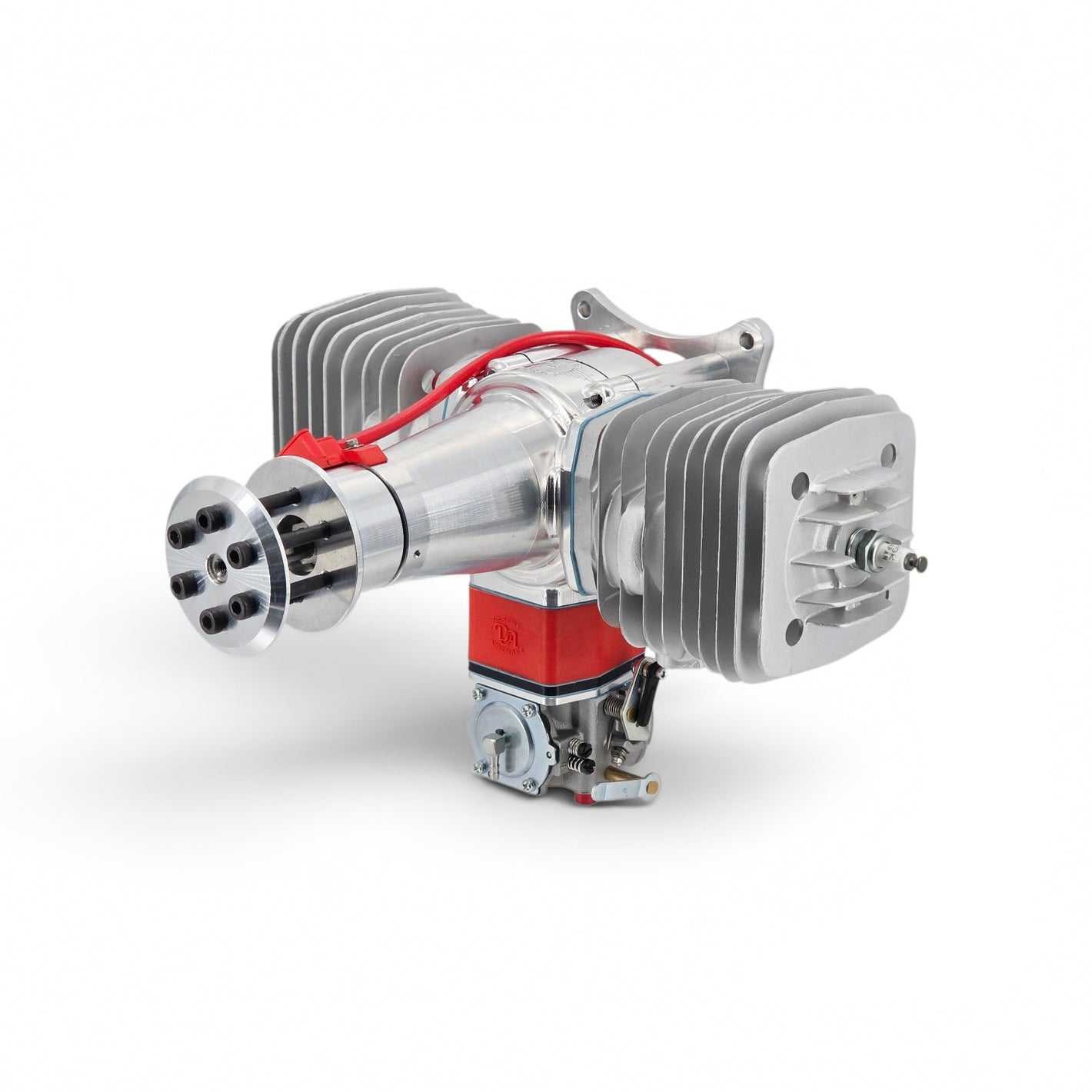

DA150L
Desert AircraftDA150L
$ 1,958.00
$ 1,958.00

Proven Reliability, Smooth Power

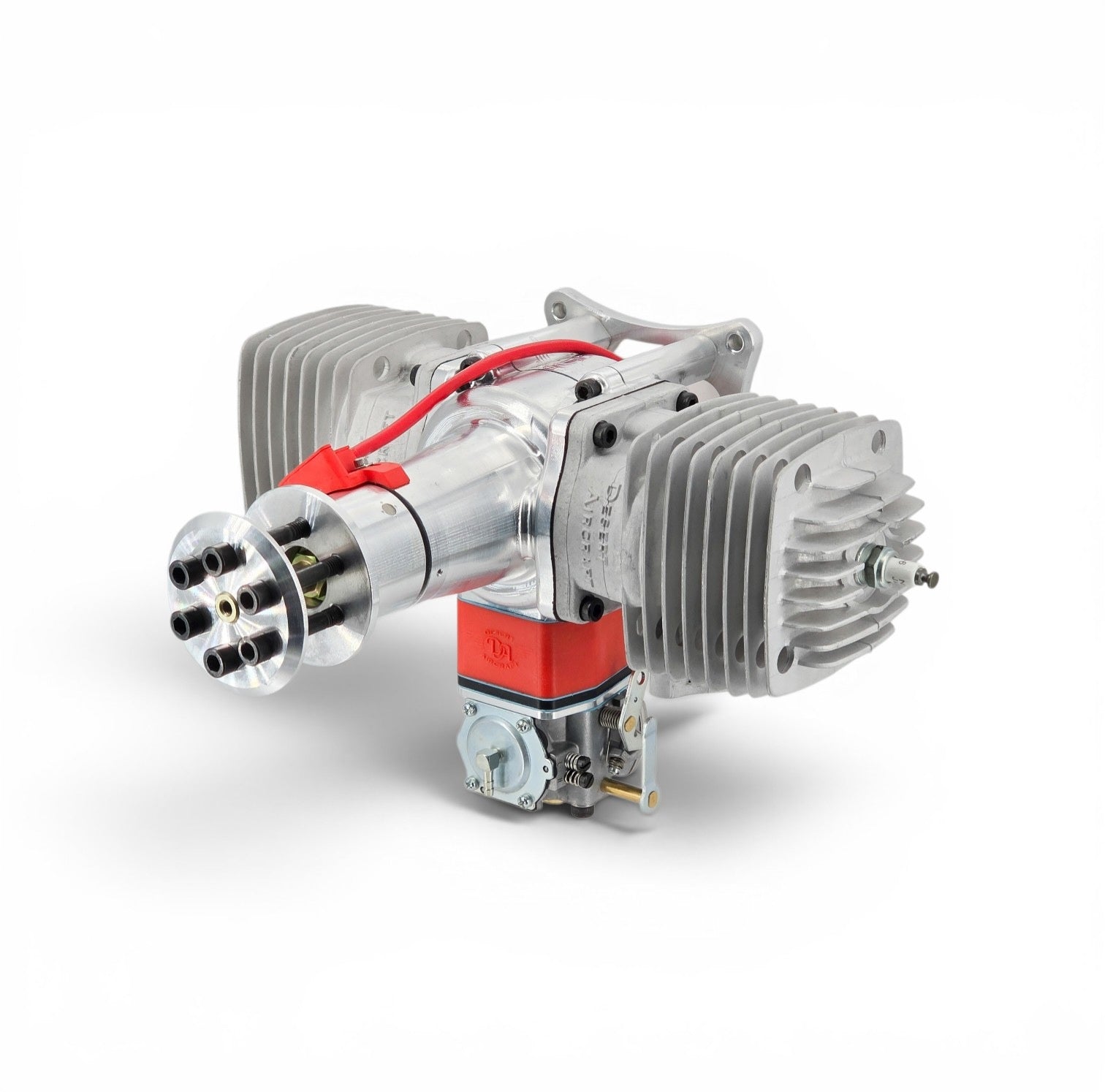

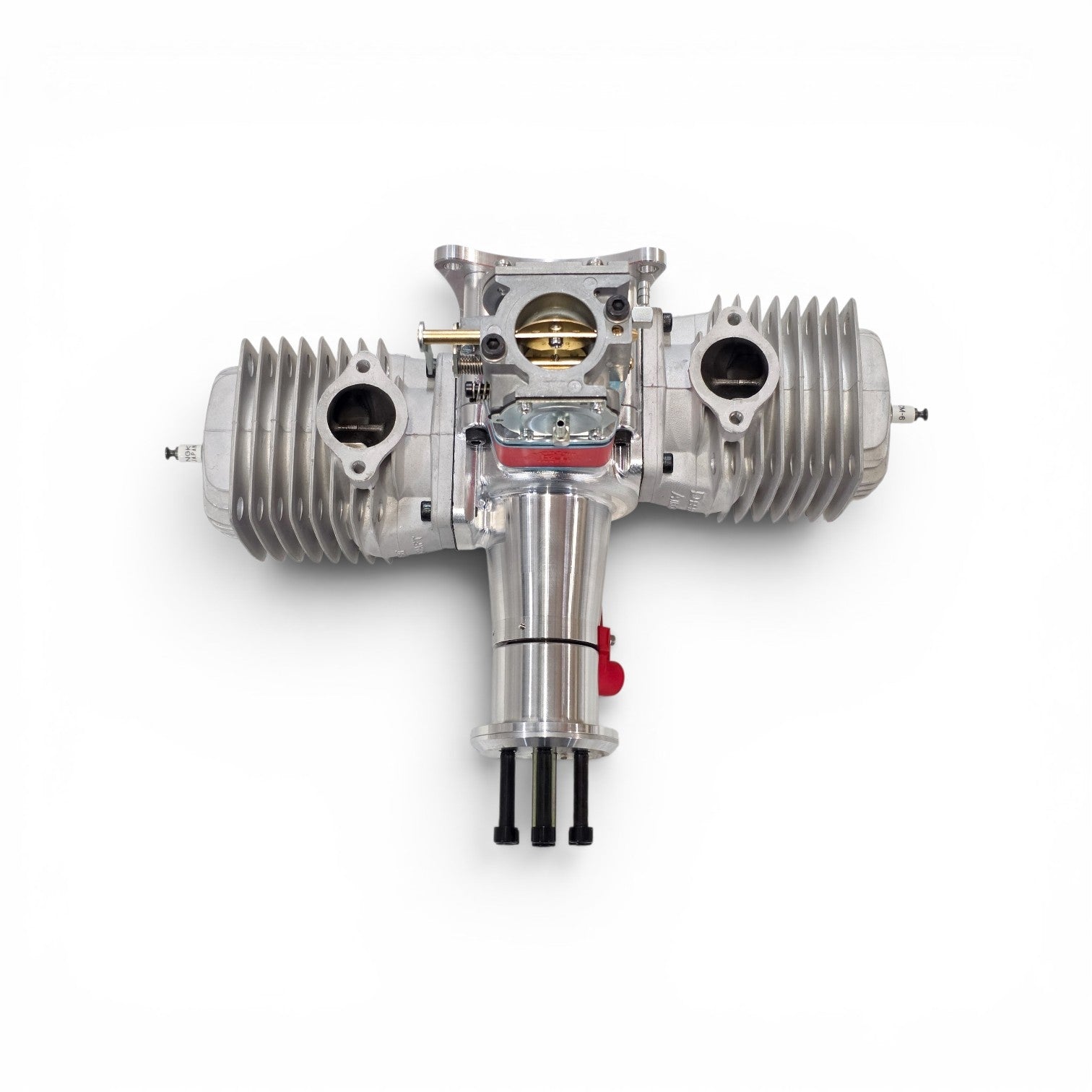

The DA-170 is our proven two-cylinder powerhouse for 40% aerobatic and scale aircraft. Renowned for its reliability, smooth power delivery, and crisp throttle response, the DA-170 delivers the performance required for everything from precision sport flying to Unlimited-level aerobatic competition.


***Engines will no longer come with a paper manual, but instead a QR code linking you to the manual.  This will allow you to be able to pull up your manual on any electronic device.  If you need a paper manual, please include that in your notes for your order.***

Specifications

  • Displacement: 10.48 ci (171.8 cc)
  • Output: 14.71hp
  • Weight: 7.85 lbs (3.56 kilos)
  • Length: 7.67 in (195 mm)
  • RPM Range: 1,100 to 6,500
  • Warranty: Three Years
  • Bolt Circle: 34mm
  • Prop Bolt: (6) M6x55mm

Features

  • Three crank bearings, with long spacing between front bearings.
  • Four petal reed valve, bottom induction.
  • Desert Aircraft, auto advance, electronic ignition.
  • Walbro Carburetor
  • Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
  • CNC milled, 7075 aluminum alloy crankcase.
  • Low vibration.
  • Long rod to stroke ratio.
  • Aerobatic power curve.

Recommended Propellers

2-Blade

  • 30x13
  • 31x12
  • 32x10
  • 32x11
  • 32x12

3-Blade

  • 28.5x12
  • 29x12N

Recommended Exhaust

  • Stock Mufflers
  • KS95 Series
  • KS1090
  • MTW110 Series
  • MTW RE3

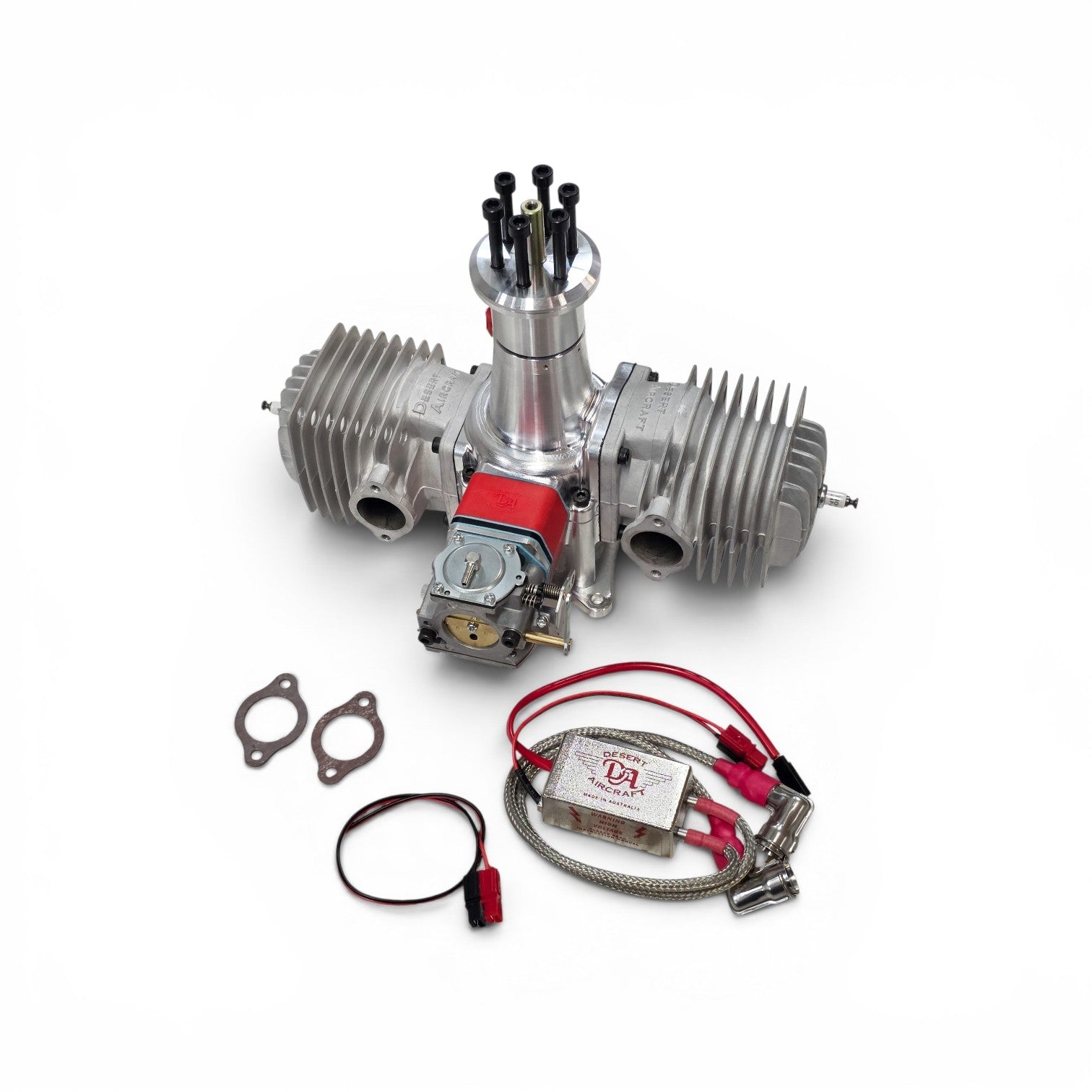

In The Box

  • DA170 Complete With Carburetor
  • Twin Ignition Modules
  • 2 NGK CM6 Spark Plugs
  • 2 Exhaust Gaskets
  • 6 M5x55 Prop Bolts
  • 1 Prop Washer
