Excellence, Redefined

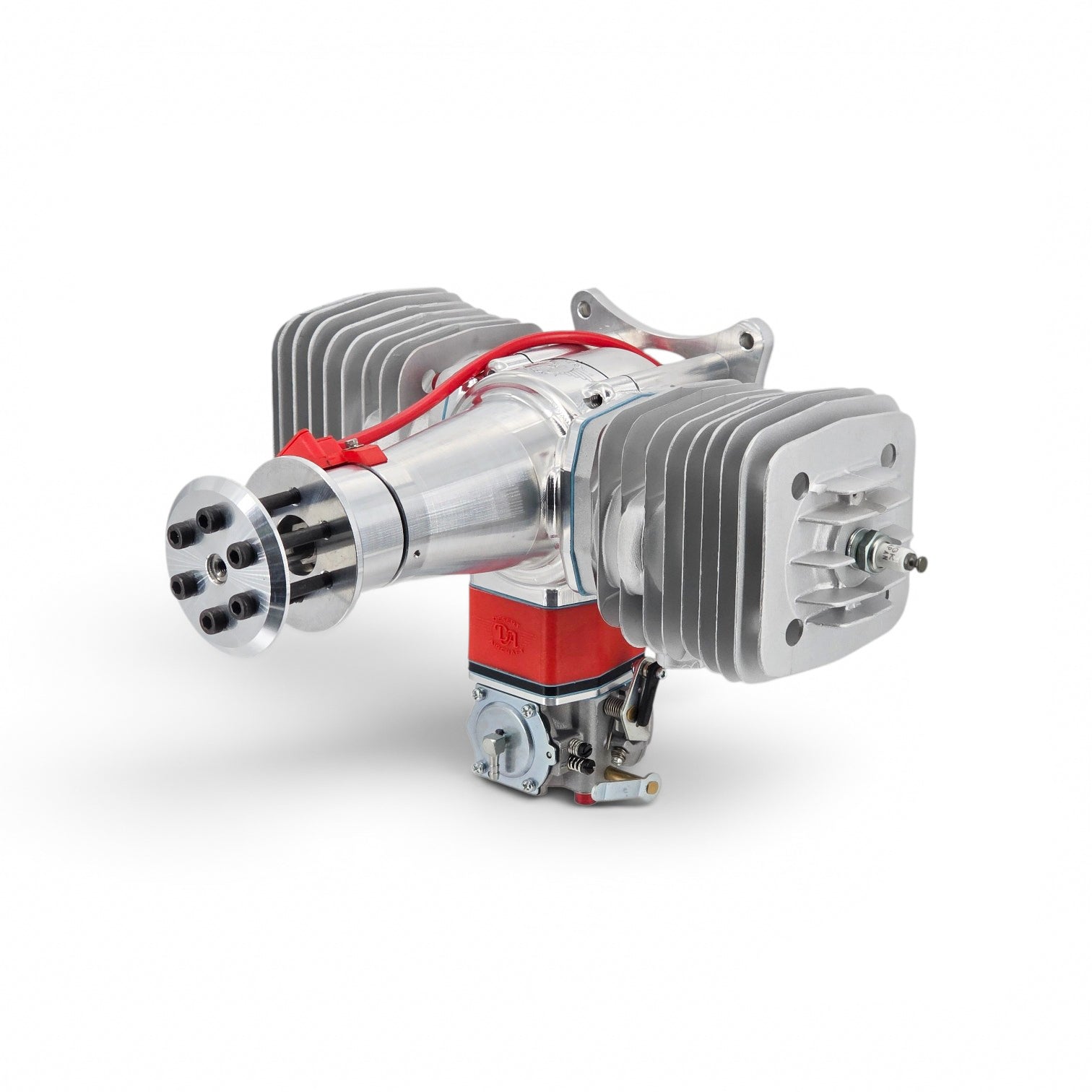

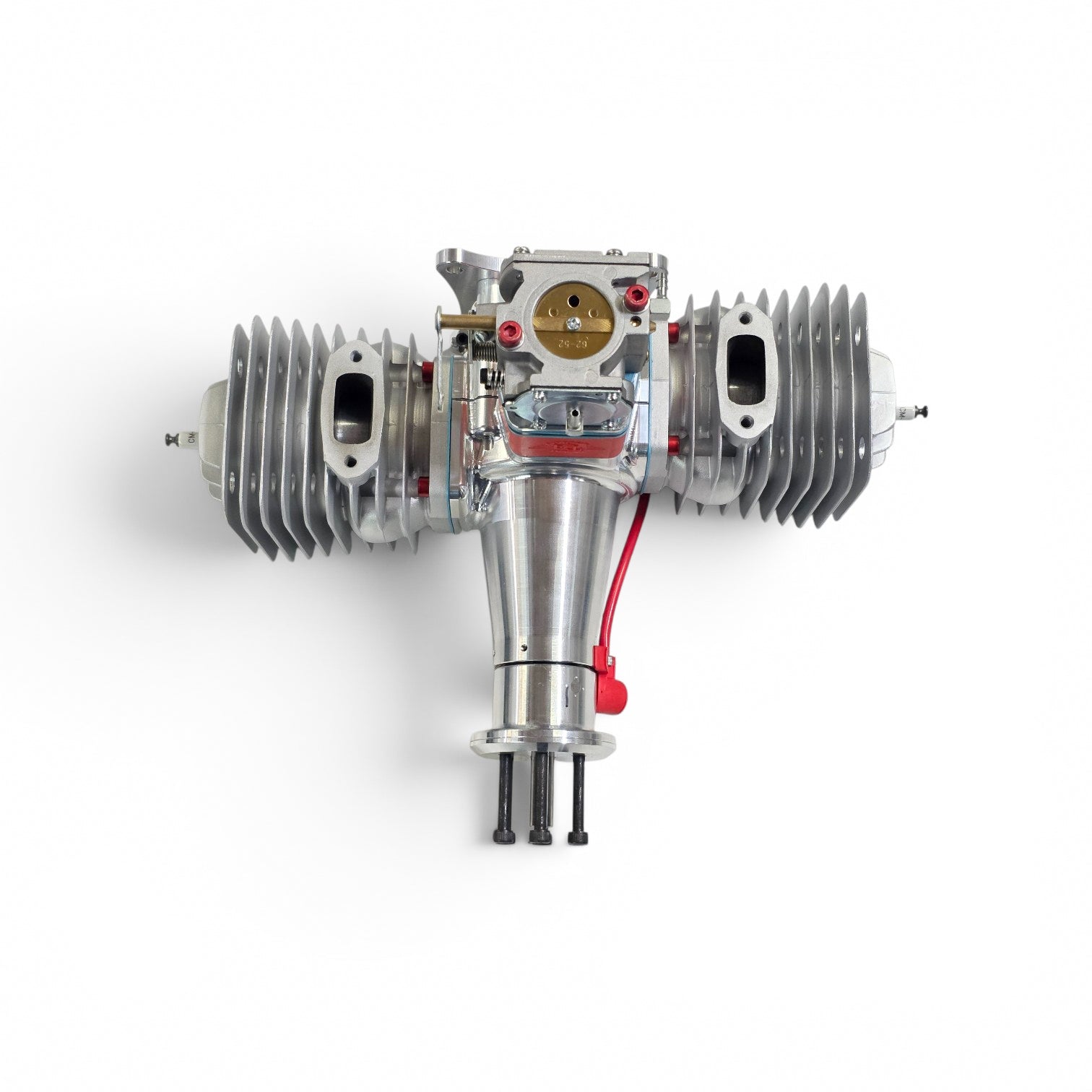

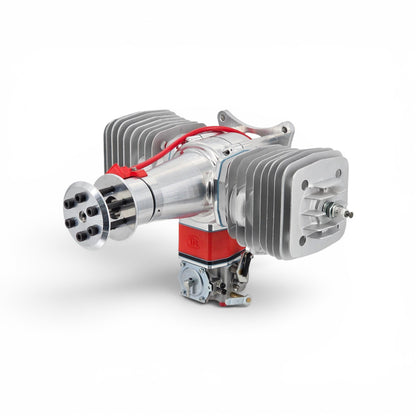

The DA150 has been ruining excuses since 1999. A fixture at the highest levels of giant scale aerobatic competition, it has built its reputation the old-fashioned way: by winning. The DA150L carries that legacy forward with decades of proven engineering, exceptional reliability, enhanced lightening, and the kind of performance that leaves only one variable between the transmitter and the trophy.

TOC Champion, Tucson Aerobatic Shootout Champion, IMAC National Champion, XFC Champion, Don Lowe Masters Champion, and Unlimited Air Races National Champion!!!

***Engines will no longer come with a paper manual, but instead a QR code linking you to the manual.  This will allow you to be able to pull up your manual on any electronic device.  If you need a paper manual, please include that in your notes for your order.***

Click here for parts

Click here for 3 View

Instruction Manual

Specifications

• Displacement: 9.15 ci (150 cc)
• Weight: 7.26 lbs (3.3 kilos)
• Old Style Weight: 8.29lbs
• Bore: 1.9291 in (49 mm)
• Stroke: 1.5748 in (40 mm)
• Length: 7.695 in (195.45 mm)
• RPM Range: 1,000 to 6,500
• Warranty: Three year
• Bolt Circle: 34mm
• Prop Bolt: (6) 5mm

Features

• Three crank bearings, long spacing between front bearings for shaft stability.
• Four petal reed valve, bottom induction.
• Desert Aircraft, auto advance, electronic ignition.
• Walbro Carburetor
• Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
• CNC milled, 7075 aluminum alloy crankcase.
• Low vibration.
• Long rod to stroke ratio.
• Aerobatic power curve.

Recommended Props

2-Blades

• 30x12
• 32x10
• 32x12

3-Blades

• 28x12
• 28.5x12
• 29x12n

Recommended Exhaust

• Stock Mufflers
• KS95 Series
• KS1090
• MTW110 Series
• MTW RE3

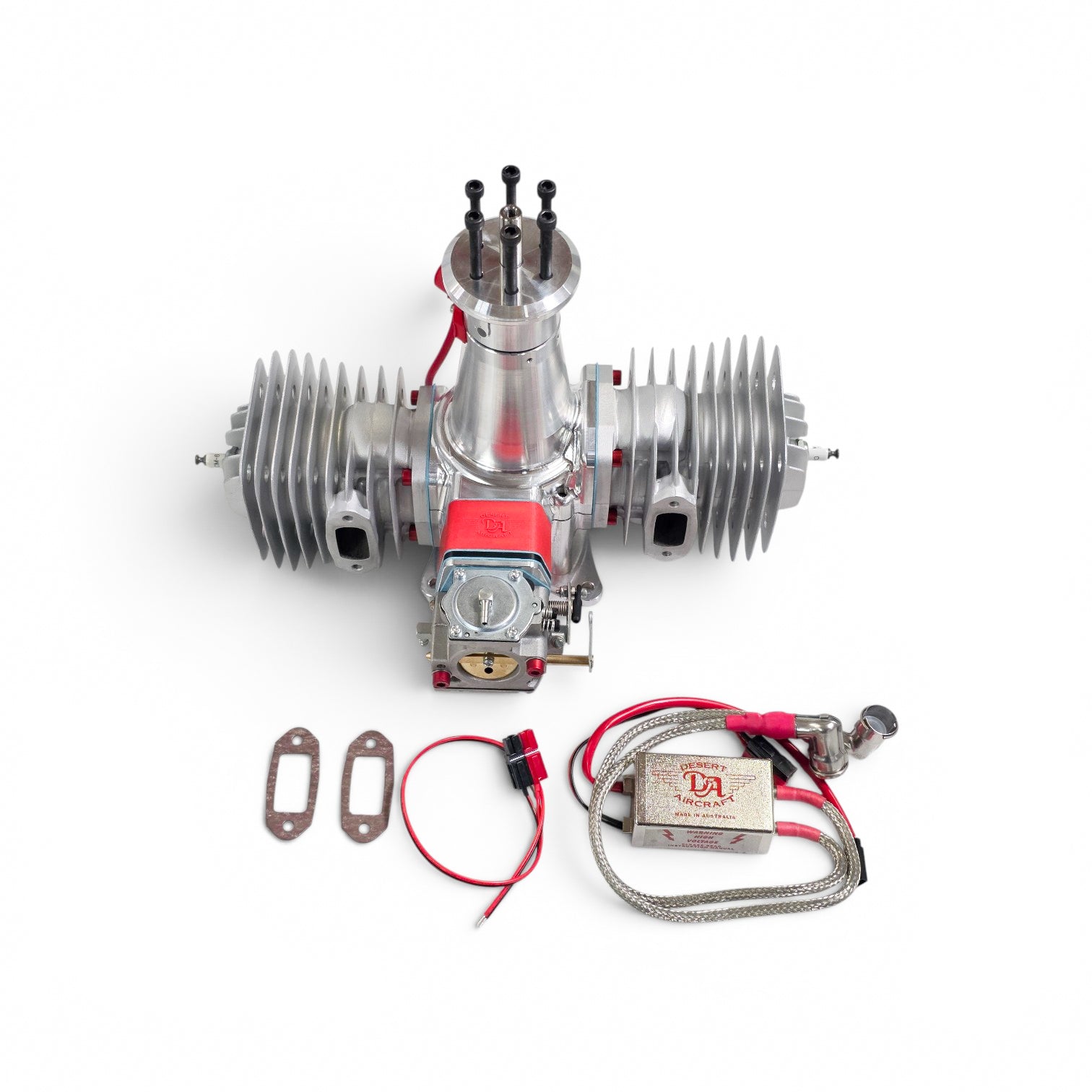

In The Box

• DA150L Complete With Carburetor
• Twin Ignition Modules
• 2 NGK CM6 Spark Plugs
• 2 Exhaust Gaskets
• 6 M5x55 Prop Bolts
• 1 Prop Washer
