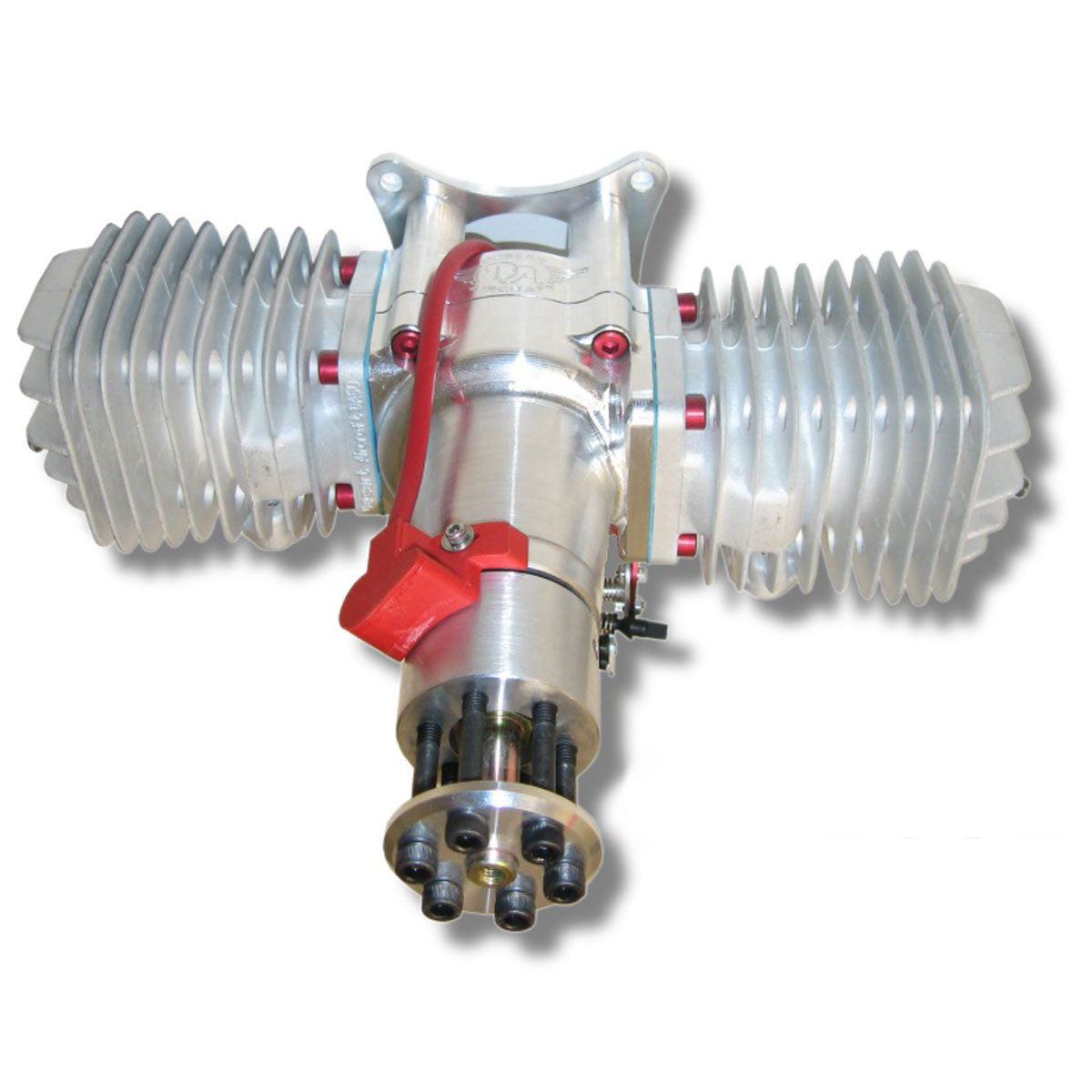

DA-100L

The well proven original DA-100 now even lighter and stronger !

We couldn't resist adding some new features like a new reed cage, reed valve and a lighter crankcase to our classic 100cc engine. The result: The DA-100L is lighter, has an improved mid-range, and more top end power. All while being one of the most dependable, long running engines ever offered to the RC market.

 All engines come with ignition, prop washer, and prop bolts.

Click here for parts

Click here for 3 View ( old style 100 )

Click here for 3 View ( 100 L )

Instruction Manual

Specifications

• Displacement: 6.10 ci (100 cc)
• Output: 9.8 hp
• Weight: 5.57 lbs (2.53 kilos)
• Bore: 1.6771 in (42.6 mm)
• Stroke: 1.3779 in (35 mm)
• Length: 6.5 in (162.5 mm)
• Fuel Consumption: 2.5 oz/min @ 6,000 RPM
• Warranty: Three year
• Bolt Circle: 29mm
• Prop Bolt: (6) 5mm

Features

• Three crank bearings with long spacing between front bearings.
• Four petal reed valve, bottom induction.
• Desert Aircraft, auto advance, electronic ignition.
• Walbro Carburator
• Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
• CNC milled, 7075 aluminum alloy crankcase.
• Low vibration.
• Long rod to stroke ratio.
• Aerobatic power curve.

Recommended Props

***Engines will no longer come with a paper manual, but instead a QR code linking you to the manual.  This will allow you to be able to pull up your manual on any electronic device.  If you need a paper manual, please include that in your notes for your order.
