Fourtitude Fuel Tanks
At this time we are only offering standard ground shipping for website orders to the USA & Canada only.
All OTHER COUNTRIES please contact us for rates.
For faster USA shipping options, give us a call at 520-722-0607.
ALL tanks require basic assembly. This process takes 15 mins or less. See above detailed video on for any questions.
8oz: These are perfect for the new emerging 10-26cc size spark ignition engines. Average flight time with a 20cc is about 11 minutes.
8 ounce (236 ML) - Length 5 3/8” x Width 1 7/8" x Height 1 7/8” (136.5 x 49.5 x 49.5 mm) - Weight 1 ounce

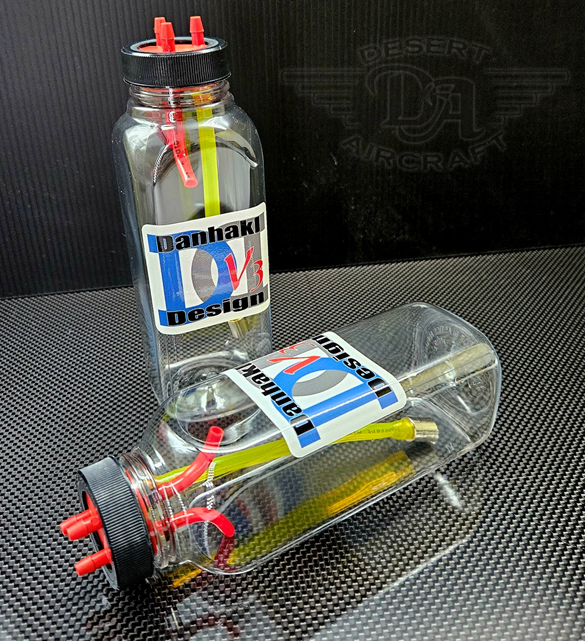

12oz: All of our customers have been requesting a tank that will squeeze into a 20cc size aircraft and also work well in the 30cc size aircraft when slightly lower flight times are acceptable vs. our 16oz option. Well we have been listening and here is the answer! Average flight time with a DA35 is 12 minutes.
12 ounce (354 ML) - Length 6 3/4" ” x Width 2 3/16"” x Height 2 3/16” (171.5 x 55.5 x 55.5 mm) - Weight 1.4 ounces

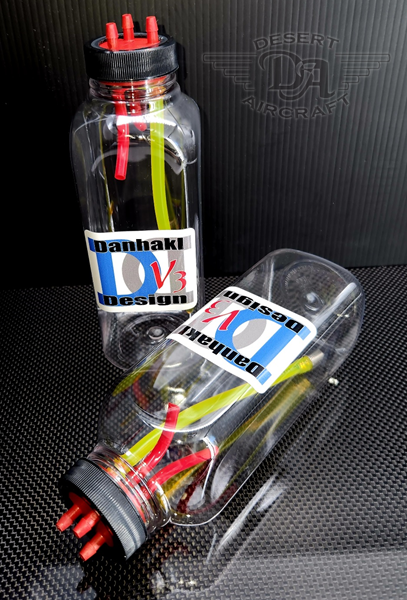

16oz: Compact size allows these to fit 30cc airplanes but they have large enough capacity for up to a 50cc airplanes. Average flight time with a DA50 is about 10 minutes.
16 ounce (473 ML) - Length 7 3/8” x Width 2 3/8” x Height 2 3/8” (187.3 x 60 x 60 mm) - Weight 1.5 ounces
20oz: DA70 owners you have been requesting a larger tank and here it is! Average flight time with a DA70 is about 10 minutes.
20 ounce (591 ML) - Length 7 5/8” x Width 2 5/8" x Height 2 5/8” (193.5 x 66.5 x 66.5 mm) - Weight 1.75 ounces.

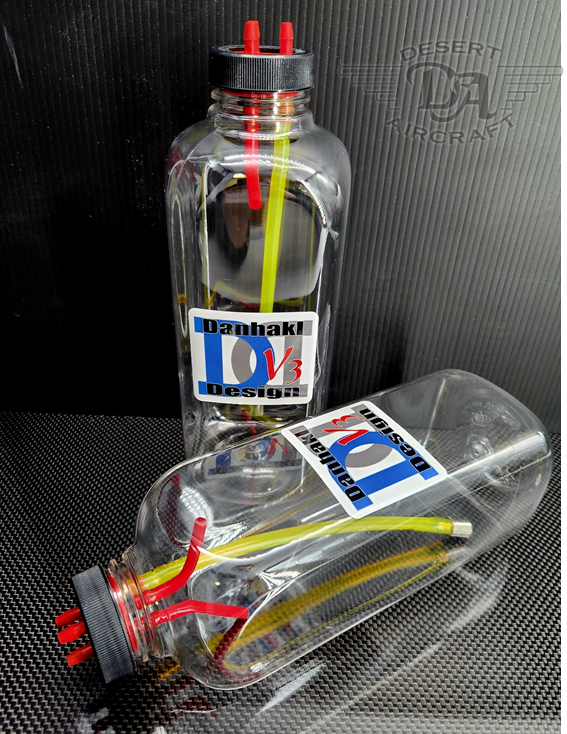

32oz: These can also be used together if 64 oz's is needed. Use part #FORA1005 Tee Fittings 1/8" to plumb them together. Tee each vent line, fill line, and clunk line to each other. Then plumb your lines to the normal locations as if they were off a single tank. If you are using a dual carb engine such as a DA200, then you do not have to tee the clunks. Use one clunk line for each carb. The vent and fill fittings keep the tanks fuel level even during flight. Note this is the only approved method of plumbing two 32oz tanks to work in unison. If you plumb them any other method it will damage the tanks. Yes we have tested this and it works perfectly. In fact Andrew Jesky won the 2011 and 2015 Tucson Aerobatic Shootout using this very setup.
32 ounce (946 ML) - Length 8 7/8” x Width 3” x Height 3” ( 225.5 x 76 x 76 mm) - Weight 2 ounces
