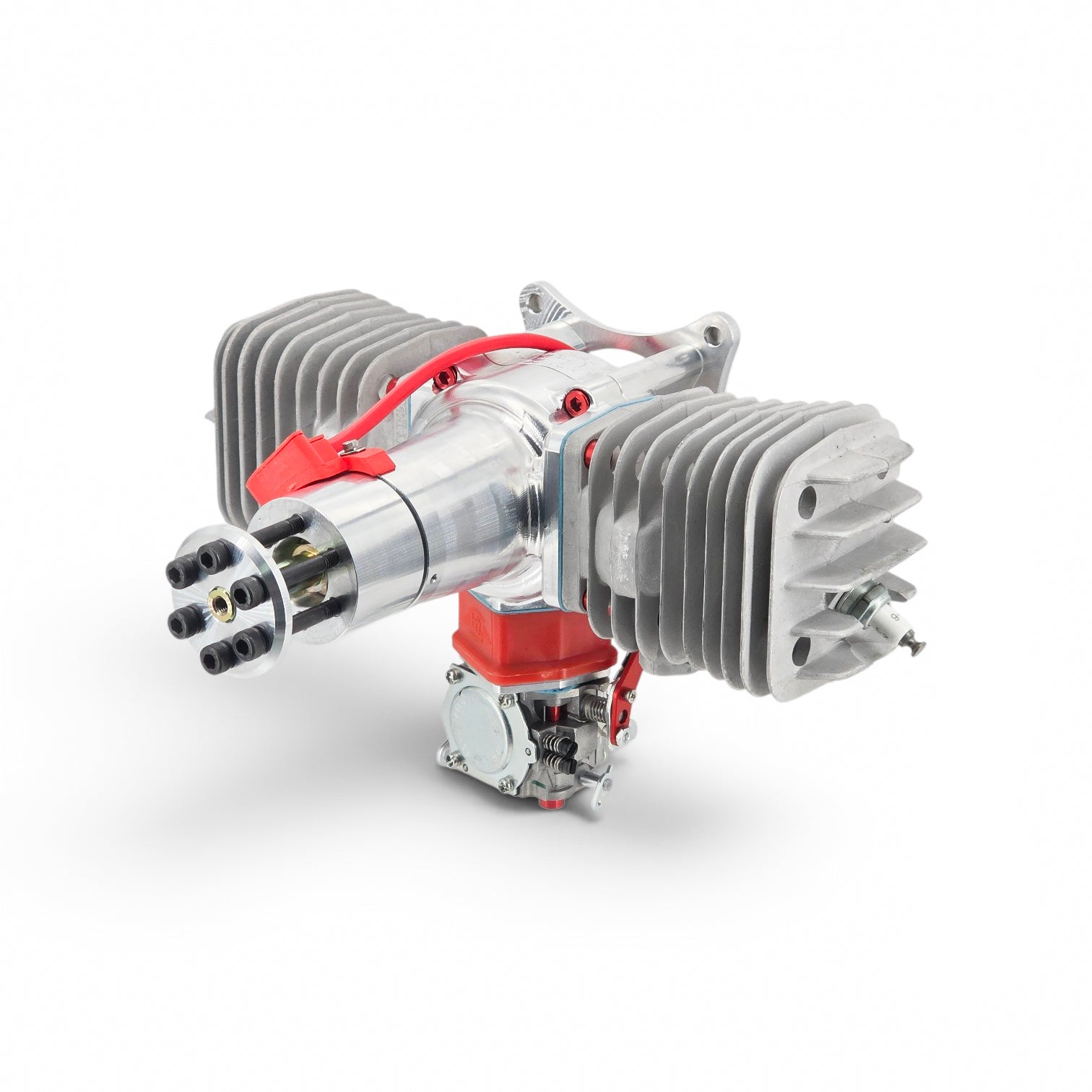

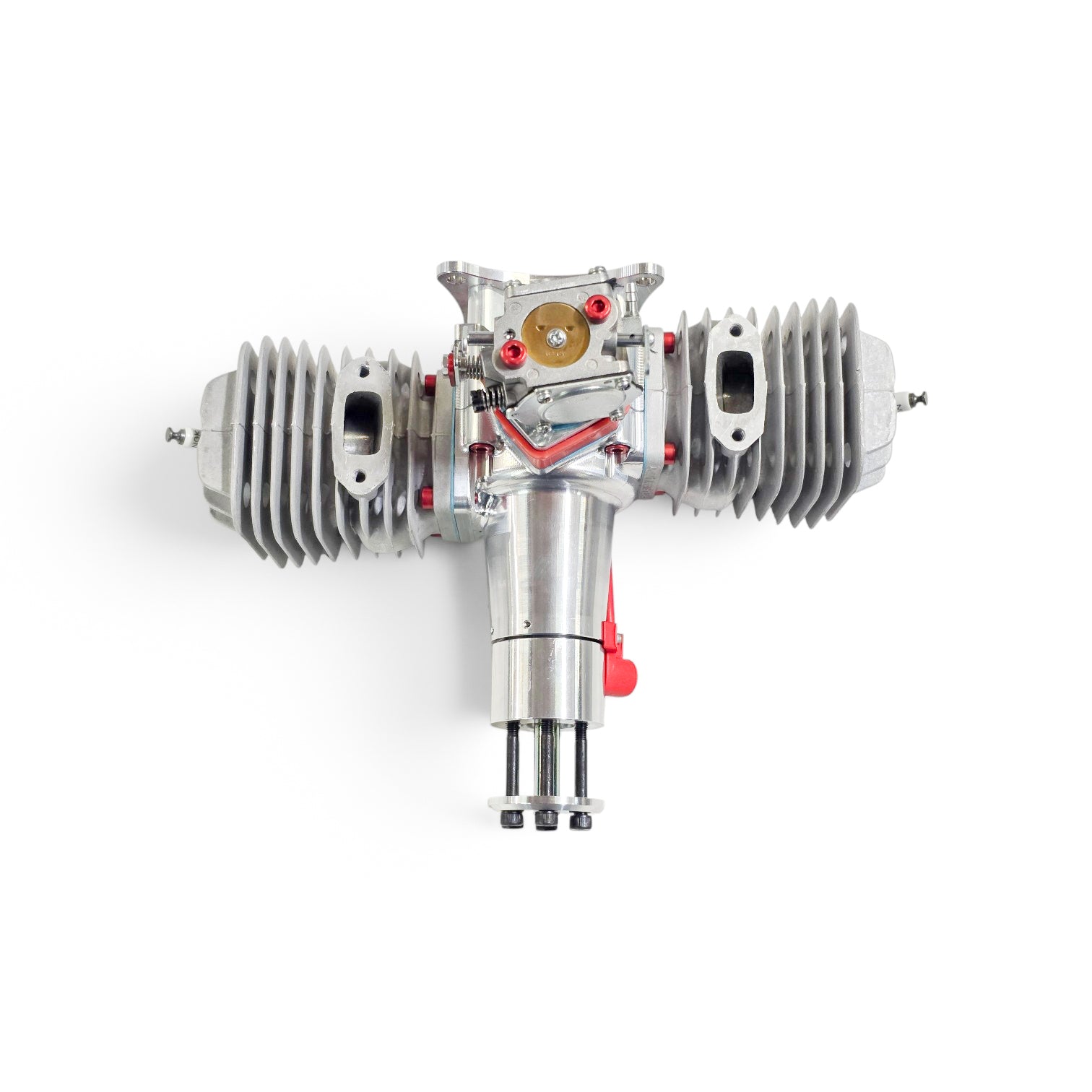

DA-100L
Couldn't load pickup availability
Well Proven Design, Now Even Lighter!
Good luck improving on a legend- we did anyway. By refining the reed induction system and reducing crankcase weight, the DA-100L delivers stronger mid-range torque, increased top-end power, and an even better power-to-weight ratio. Backed by a reputation forged over years of competition and countless flight hours, it remains one of the most dependable and enduring 100cc engines the RC world has ever known. Scale, Sport, or 3D, the DA-100L is the top tier choice for your model.
***Engines will no longer come with a paper manual, but instead a QR code linking you to the manual. This will allow you to be able to pull up your manual on any electronic device. If you need a paper manual, please include that in your notes for your order.***
Specifications
- Displacement: 6.10 ci (100 cc)
- Output: 9.8 hp
- Weight: 5.57 lbs (2.53 kilos)
- Length: 6.5 in (162.5 mm)
- RPM Range: 1200pm to 6200rpm
- Warranty: Three Years
- Bolt Circle: 29mm
- Prop Bolt: (6) M5x50mm
Features
- Three crank bearings with long spacing between front bearings.
- Four petal reed valve, bottom induction.
- Desert Aircraft, auto advance, electronic ignition.
- Walbro Carburetor
- Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
- CNC milled, 7075 aluminum alloy crankcase.
- Low vibration.
- Long rod to stroke ratio.
- Aerobatic power curve.
Recommended Propellers
2-Blade
- 26x12
- 27x10
- 28x9.5
- 28x10
3-Blade
- 24x12W
- 25x12S
- 26x12N
- 26x12
Recommended Exhaust
- Stock Mufflers
- KS 3086 Series

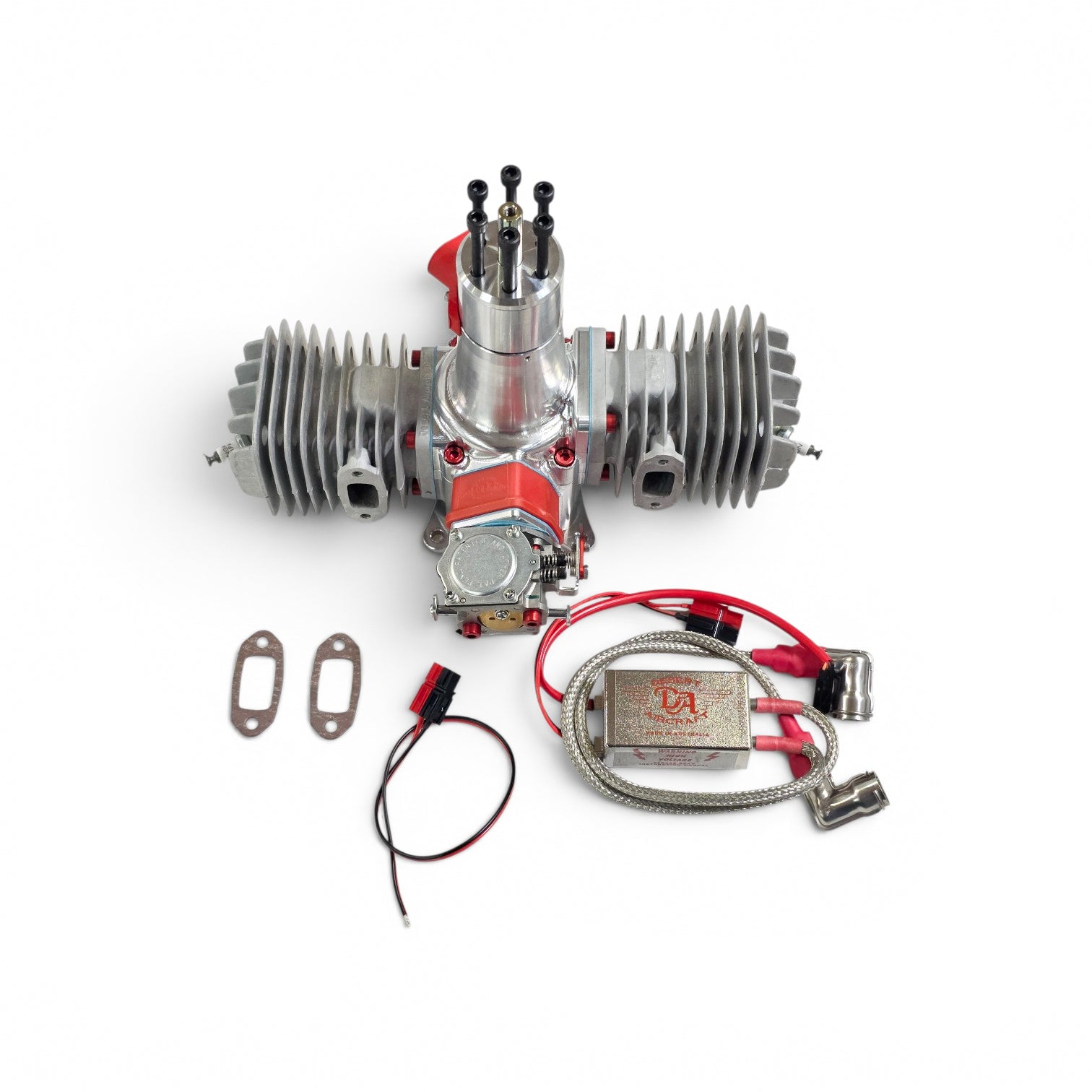

In The Box
- DA100 Complete With Carburetor
- Twin Ignition Modules
- 2 NGK CM6 Spark Plugs
- 2 Exhaust Gaskets
- 6 M5x50 Prop Bolts
- 1 Prop Washer
Old Style DA-100 3-View (with phenolic reed block):
