Ignitions & Sensors
$ 74.00
At this time we are only offering standard ground shipping for website orders to the USA & Canada only.
All OTHER COUNTRIES please contact us for rates.
For faster USA shipping options, give us a call at 520-722-0607.

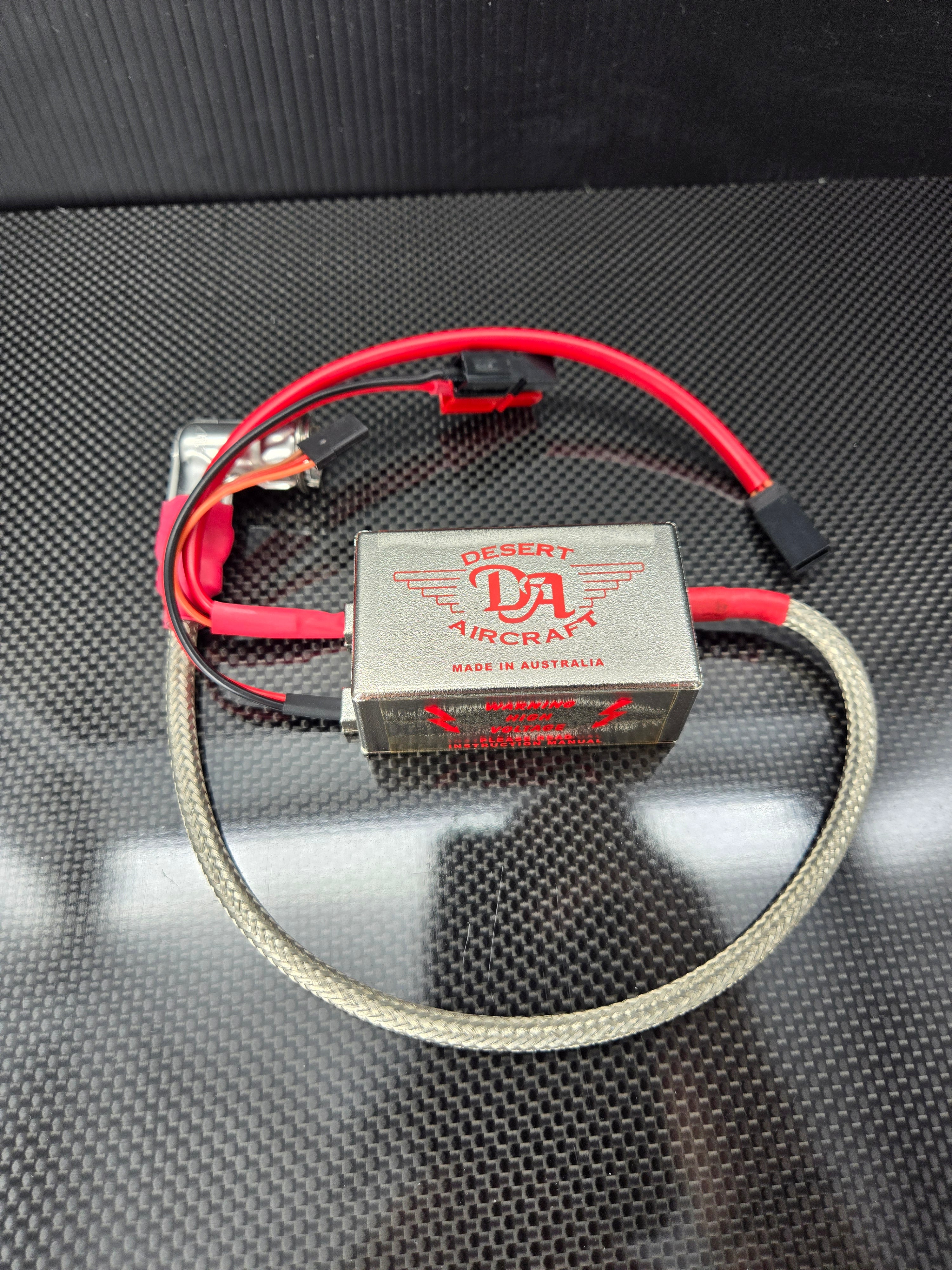

Ignitions:

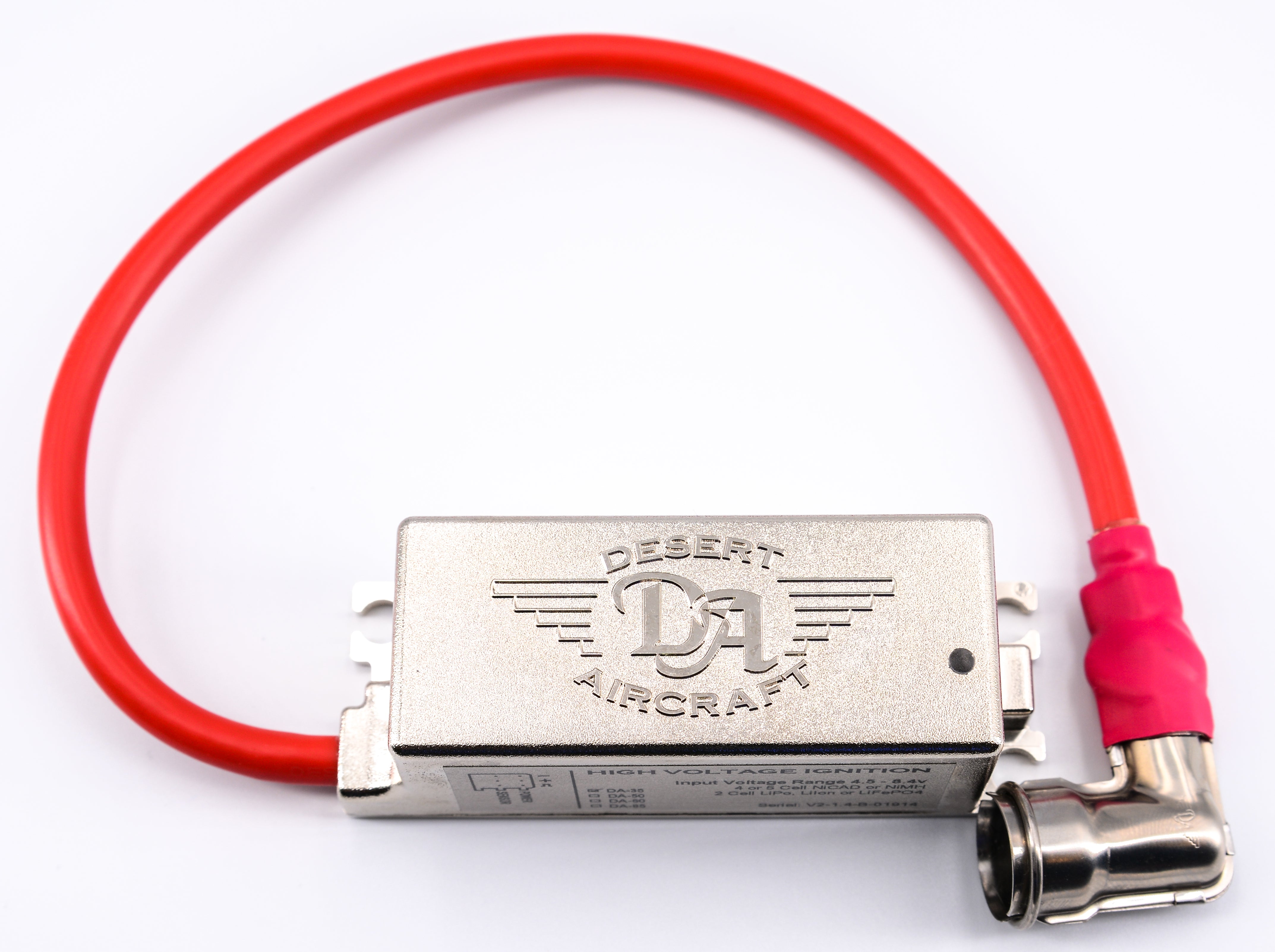

The DA35 Ignition is specific to the DA35 only (91.5g)
- DA35 ignitions can handle up to 8.4v unregulated

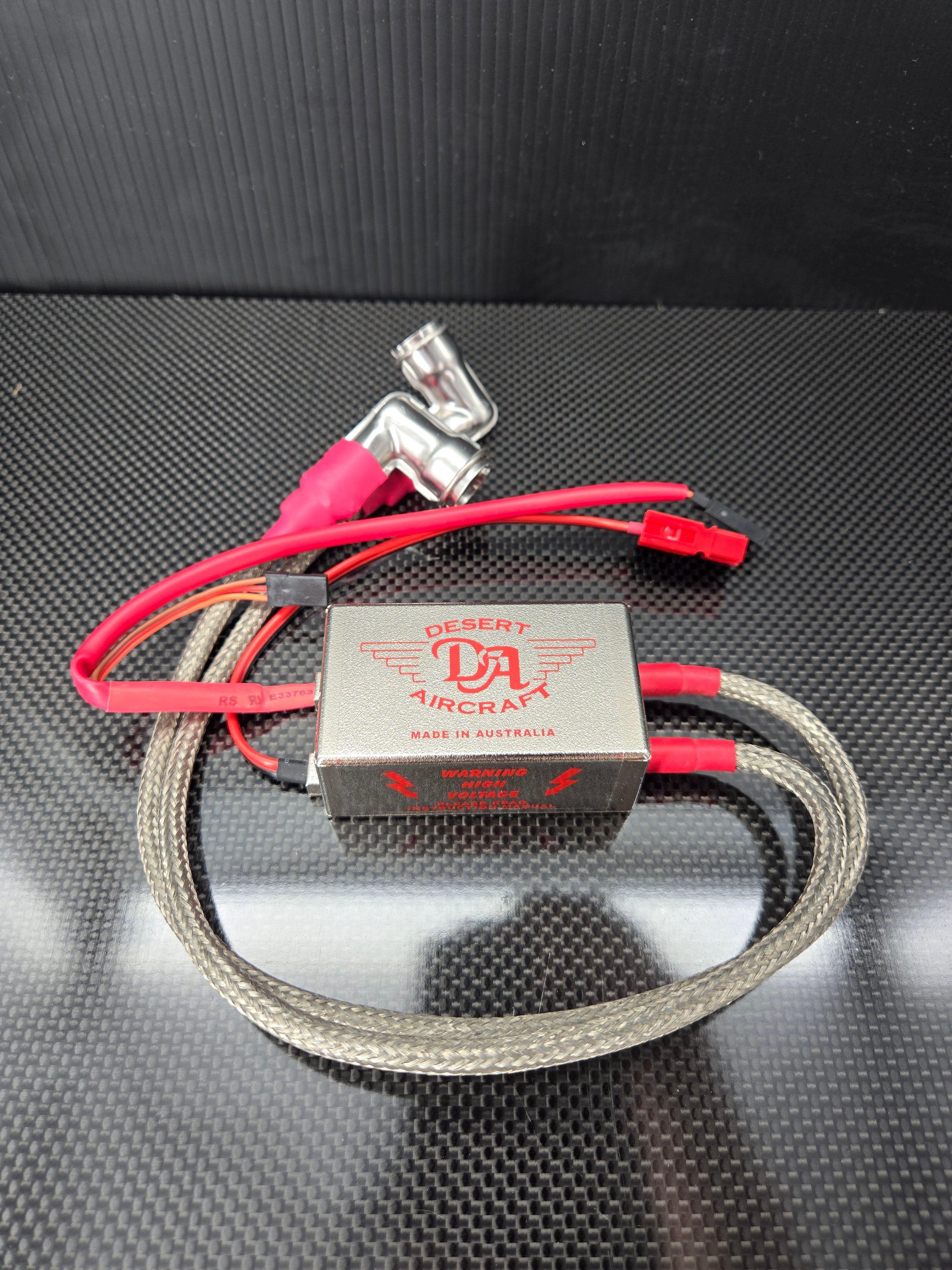

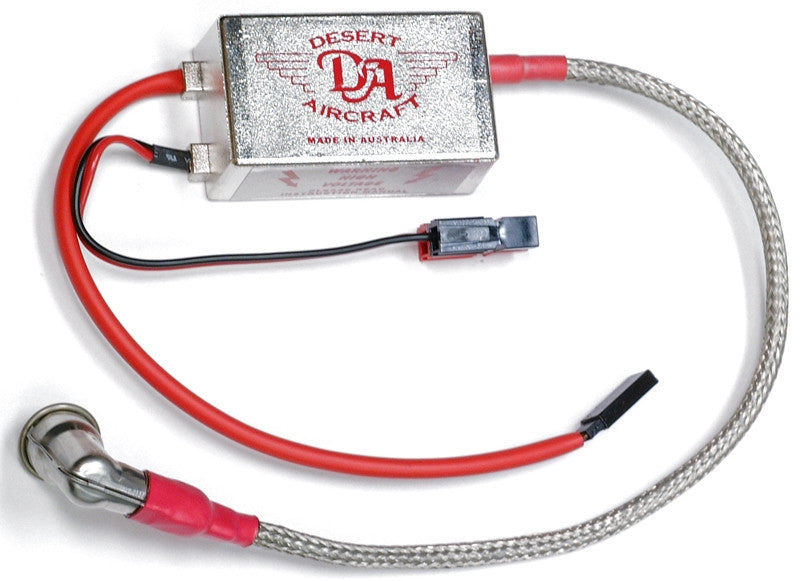

Single Ignition can be used on the DA50, 60, 85 and (2) on the 100 inline (108G)
- Single ignitions can handle 4.8v - 6.0v unregulated. LIFE batteries are the exception and can be used without issue up to 6.6v.

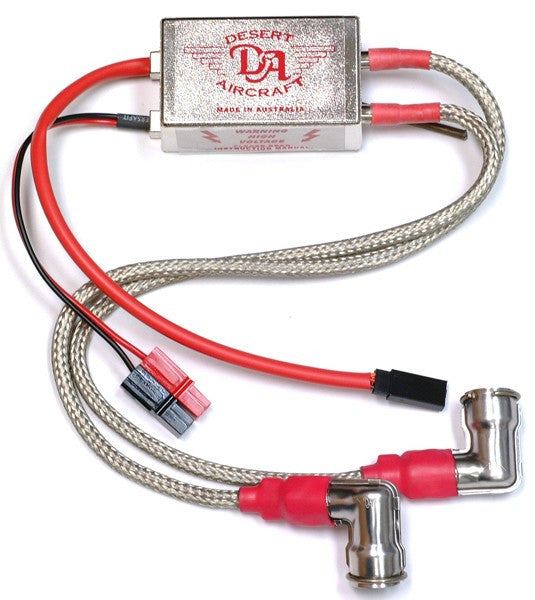

Twin IGN can be used on DA70, 100, 120, 150, 170, and (2) on the 200, 200L (144g)
- Twin ignitions can handle 4.8v - 6.0v unregulated. LIFE batteries are the exception and can be used without issue up to 6.6v.

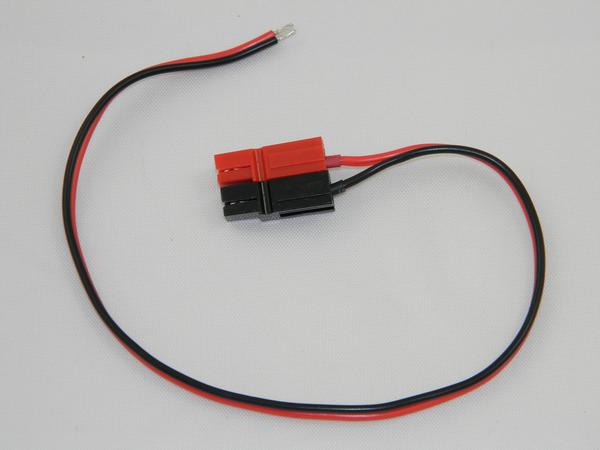

All Desert Aircraft ignition systems come standard with Anderson Powerpole connectors. It's no problem to change to a different type of connector if you prefer, yourself. DA will not replace connectors for customers.
Sensors:

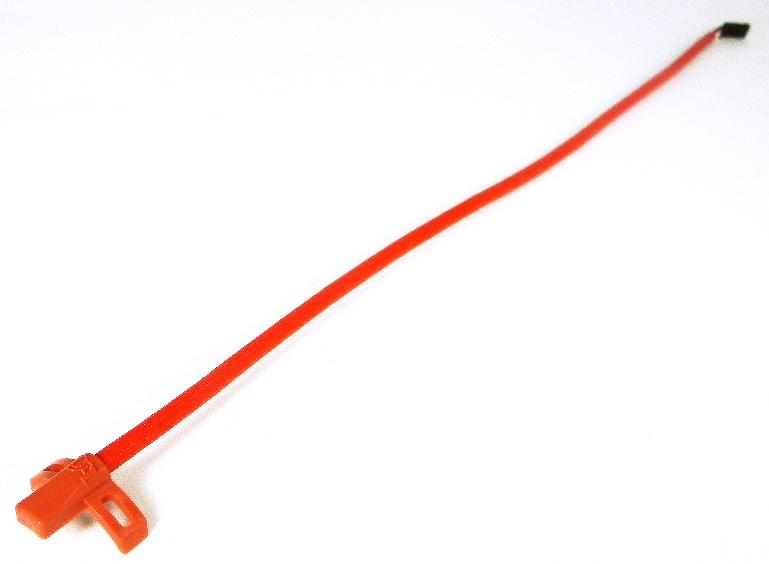

The DA35 Hall effect style sensor is only for the DA35

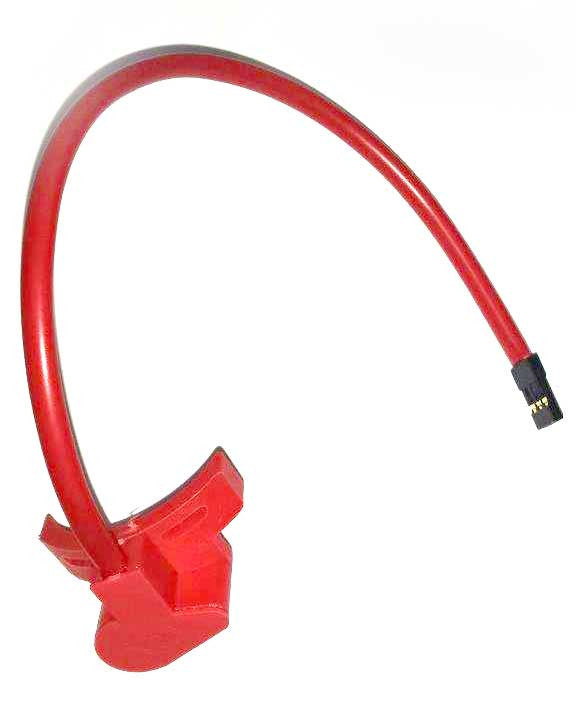

All regular style sensors (inductive coil sensor) are compatible with all DA engines except the DA35.

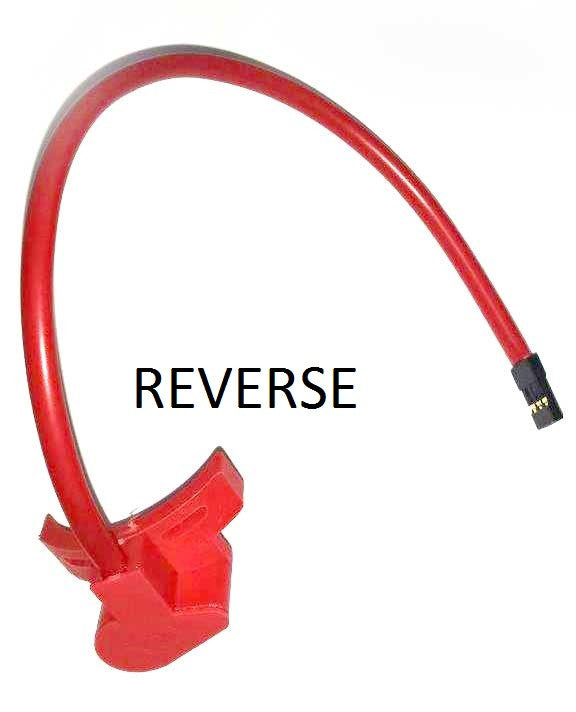

The reverse sensor will work on all DA engines except the DA35
If you would like to convert a DA35 to reverse rotation please contact us at info@desertaircraft.com

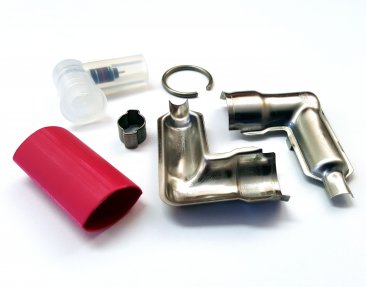

Click on the link below if you need to replace an ignition cap:
Ignition Cap Install PDF
Shielding Fix Repair will do one lead. If you have a twin, order two if both sides need fixing.
