Fourtitude Fuel Tanks

$ 19.99

At this time we are only offering standard ground shipping for website orders to the USA & Canada only.
All OTHER COUNTRIES please contact us for rates.
For faster USA shipping options, give us a call at 520-722-0607.





ALL tanks require basic assembly. This process takes 15 mins or less. See above detailed video on for any questions. Instruction Manual

Each tank includes the needed plumbing with Exceleon Fuel Line, Walbro Double Filtered Clunk, Molded Nylon vent and fill tubes, Velcro brand mounting tape, and foam mounting pad.

These can also be used together if 64 oz's is needed. Use part #FORA1005 Tee Fittings 1/8" to plumb them together. Tee each vent line, fill line, and clunk line to each other. Then plumb your lines to the normal locations as if they were off a single tank. If you are using a dual carb engine such as a DA200, then you do not have to tee the clunks. Use one clunk line for each carb. The vent and fill fittings keep the tanks fuel level even during flight. Note this is the only approved method of plumbing two 32oz tanks to work in unison. If you plumb them any other method it will damage the tanks. Yes we have tested this and it works perfectly. In fact Andrew Jesky won the 2011 and 2015 Tucson Aerobatic Shootout using this very setup.

8 ounce (236 ML) - Length 5 3/8” x Width 1 7/8" x Height 1 7/8” (136.5 x 49.5 x 49.5 mm) - Weight 1 ounce

12 ounce (354 ML) - Length 6 3/4" ” x Width 2 3/16"” x Height 2 3/16” (171.5 x 55.5 x 55.5 mm)  - Weight 1.4 ounces.  Average flight time with a DA35 is 12 minutes.

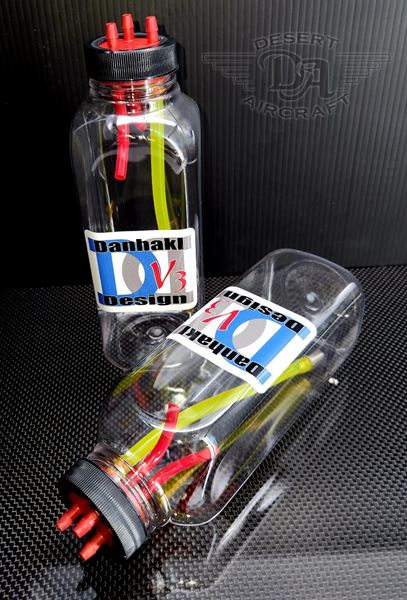

16 ounce (473 ML) - Length 7 3/8” x Width 2 3/8” x Height 2 3/8” (187.3 x 60 x 60 mm) - Weight 1.5 ounces. Fits 30cc airplanes but they have large enough capacity for up to a 50cc airplanes. Average flight time with a DA50 is about 10 minutes.

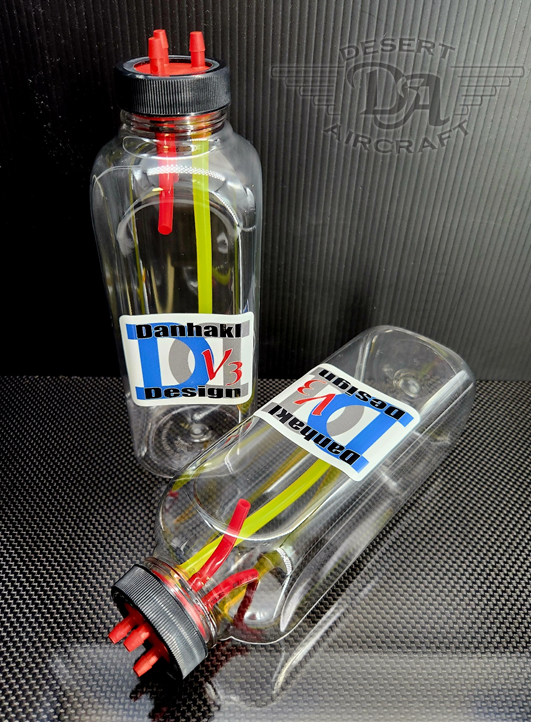

20 ounce (591 ML) - Length 7 5/8” x Width 2 5/8" x Height 2 5/8” (193.5 x 66.5 x 66.5 mm) Weight 2 ounces. Average flight time with a DA70 is about 10 minutes.

32 ounce (946 ML) - Length 8 7/8” x Width 3” x Height 3” ( 225.5 x 76 x 76 mm) - Weight 2 ounces. Compact size allows these to be used in 60cc airplanes but have a large enough capacity for up to 120cc airplanes. Average flight time with a DA120 is 11 minutes.

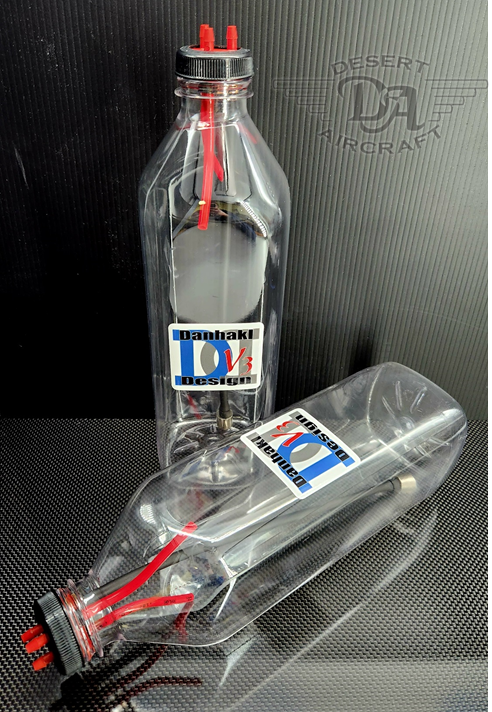

50 ounce (1.5L) - Length 11” x Width 3.4” x Height 3.4” ( 279.5 x 86 x 86 mm) - Weight 3 ounces. The clunk/ filter is larger to handle the increased fuel flow rates demanded by your new DA 215cc!
