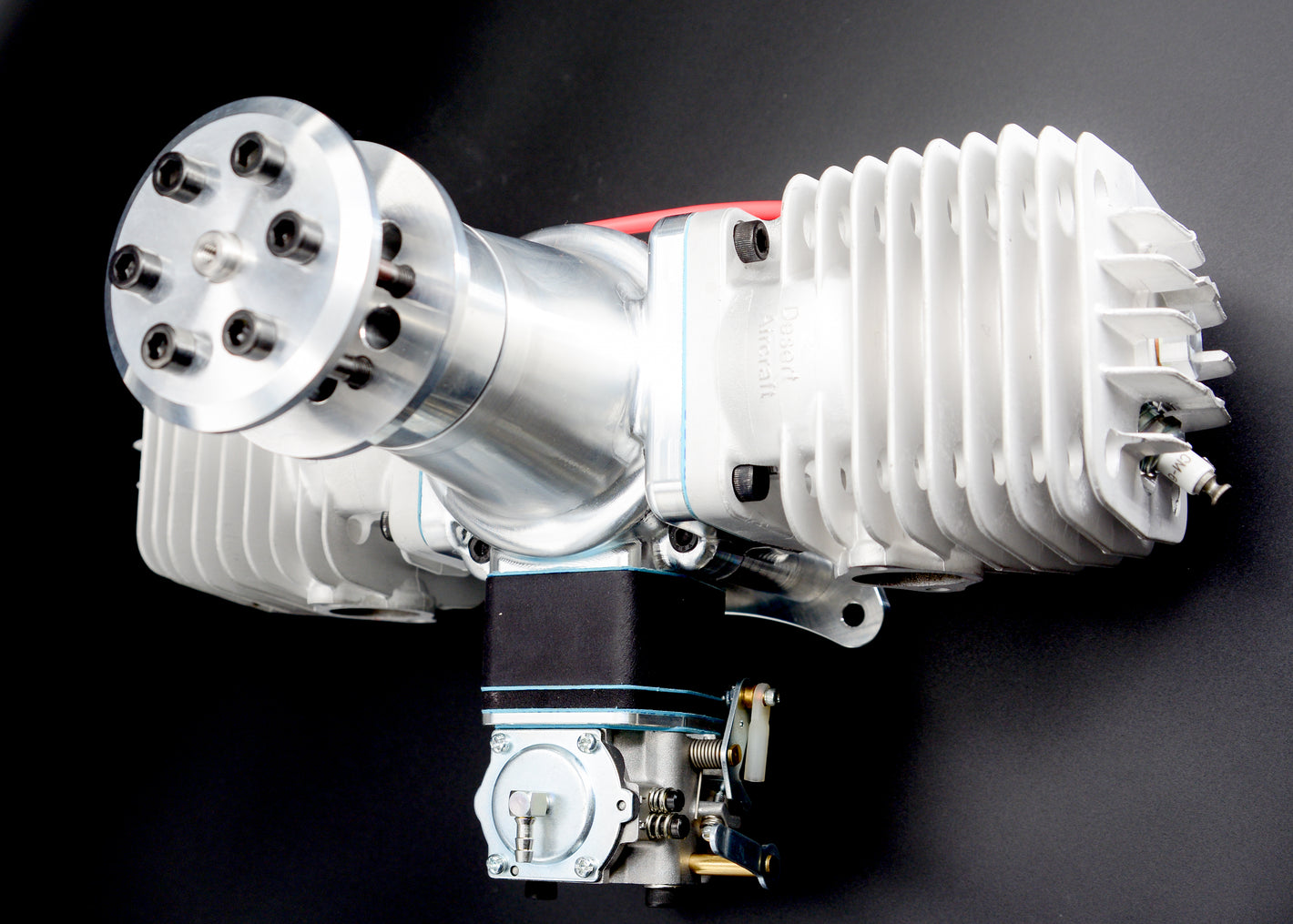

DA-200

$ 3,245.00

At this time we are only offering standard ground shipping for website orders to the USA & Canada only.
All OTHER COUNTRIES please contact us for rates.
For faster USA shipping options, give us a call at 520-722-0607.

The Champion of Champions !

TOC Champion, IMAC World Champion,

Tucson Aerobatic Shootout Champion, IMAC National Champion

Incomparable throttle transition

Incredible power

Extremely low vibration

Standard and Light (Special machined cylinders) versions available

All engines come with ignition, prop washer, and prop bolts.



Click here for parts

Click here for 3 Views

Instruction Manual

Baffling Template



Specifications

  • Displacement: 12.20 ci (200 cc)
  • Output: 19 hp
  • Weight: Standard:10.95 lbs (4.95 kilos)   Light: 10.05 lbs. (4.56 kilos)
  • Bore: 1.6771 in (42.6 mm)
  • Stroke: 1.3779 in (35 mm)
  • Length: 9.625 in (244 mm)
  • RPM Range: 900 - 6,700
  • RPM Max: 8,500
  • Fuel Consumption: 4.5 oz/min @ 6,000 RPM
  • Warranty: Two years
  • Bolt Circle: 34mm
  • Prop Bolt: (6) 5mm

Features

  • Four petal reed valve, bottom induction.
  • Desert Aircraft, auto advance, electronic ignition system.
  • Walbro Carburators
  • Crankshaft designed, manufactured, and assembled to aerospace standards at our Tucson Arizona factory.
  • Exclusive Desert Aircraft designed cylinders and pistons.
  • CNC milled, 7075 aluminum alloy crankcase.
  • Low vibration.
  • Long rod to stroke ratio.
  • Aerobatic power curve.
  • DA engines are designed using the latest tools and techniques, including 3D CAD and Stereo Lithography.
  • Extremely low vibration.

Recommended Props

    2-Blades

    • 30x13
    • 31x12
    • 32x10
    • 32x11
    • 32x12

    3-Blades

    • 29x12
    • 29x12n
    • 29x12evo (Best)
    • 29x13
