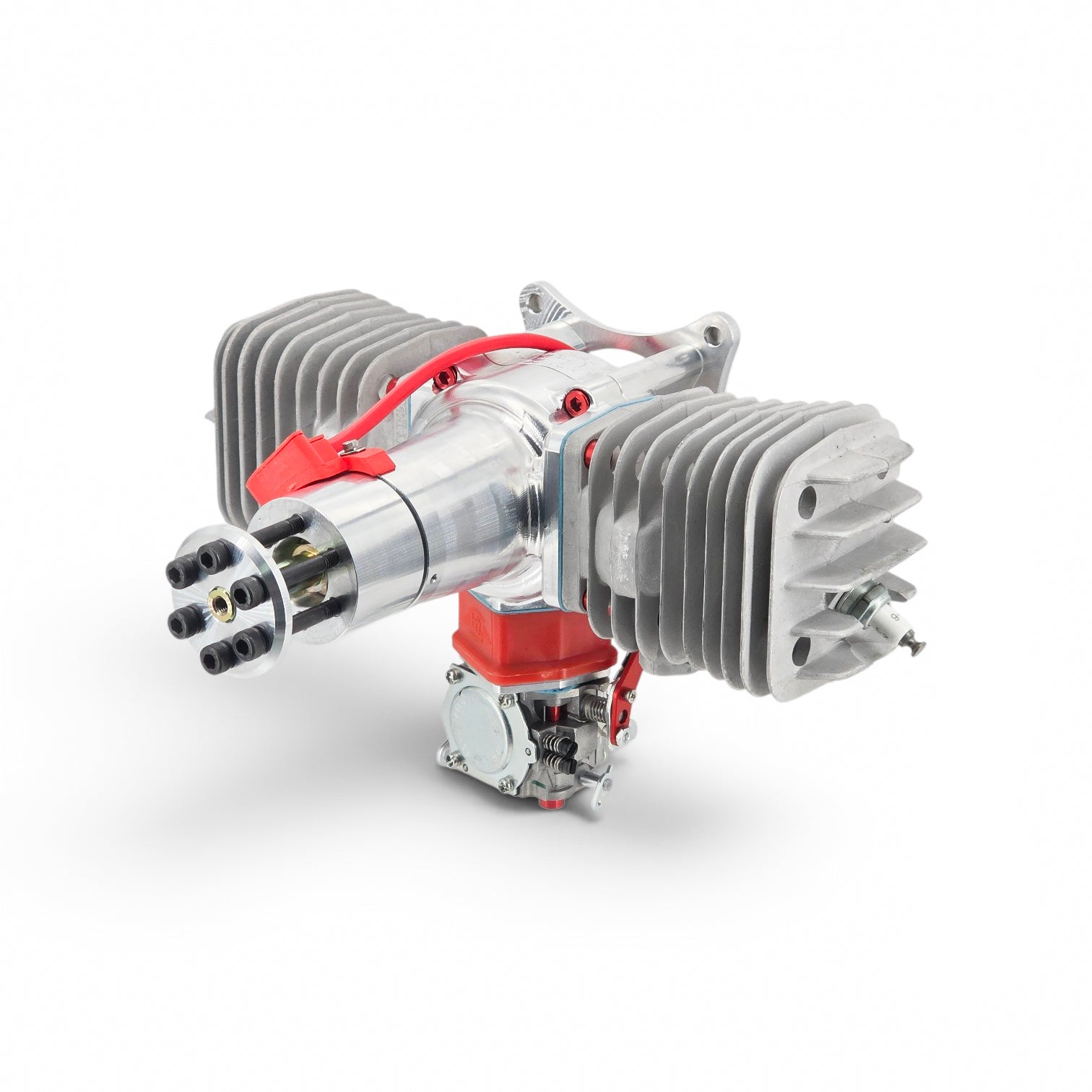

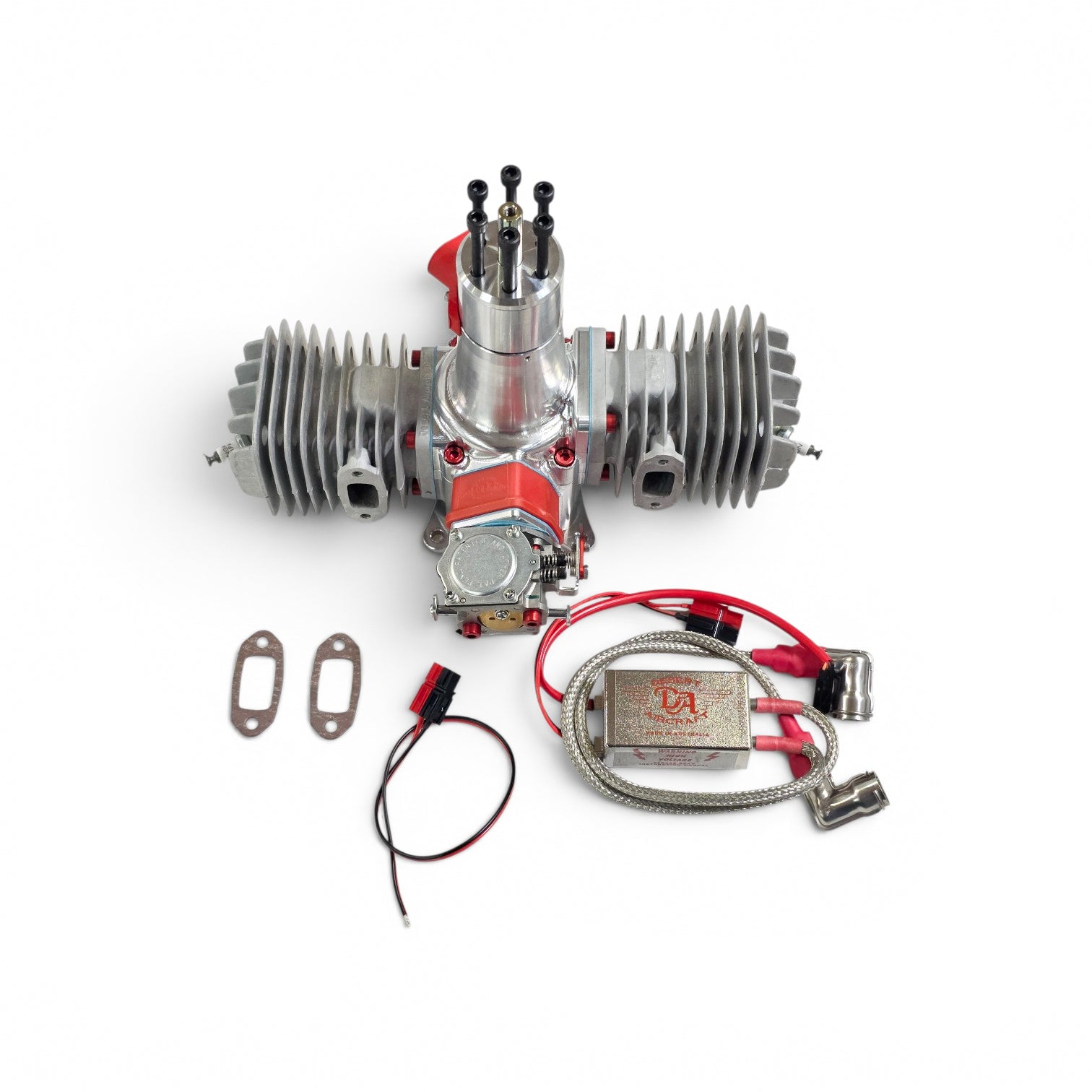

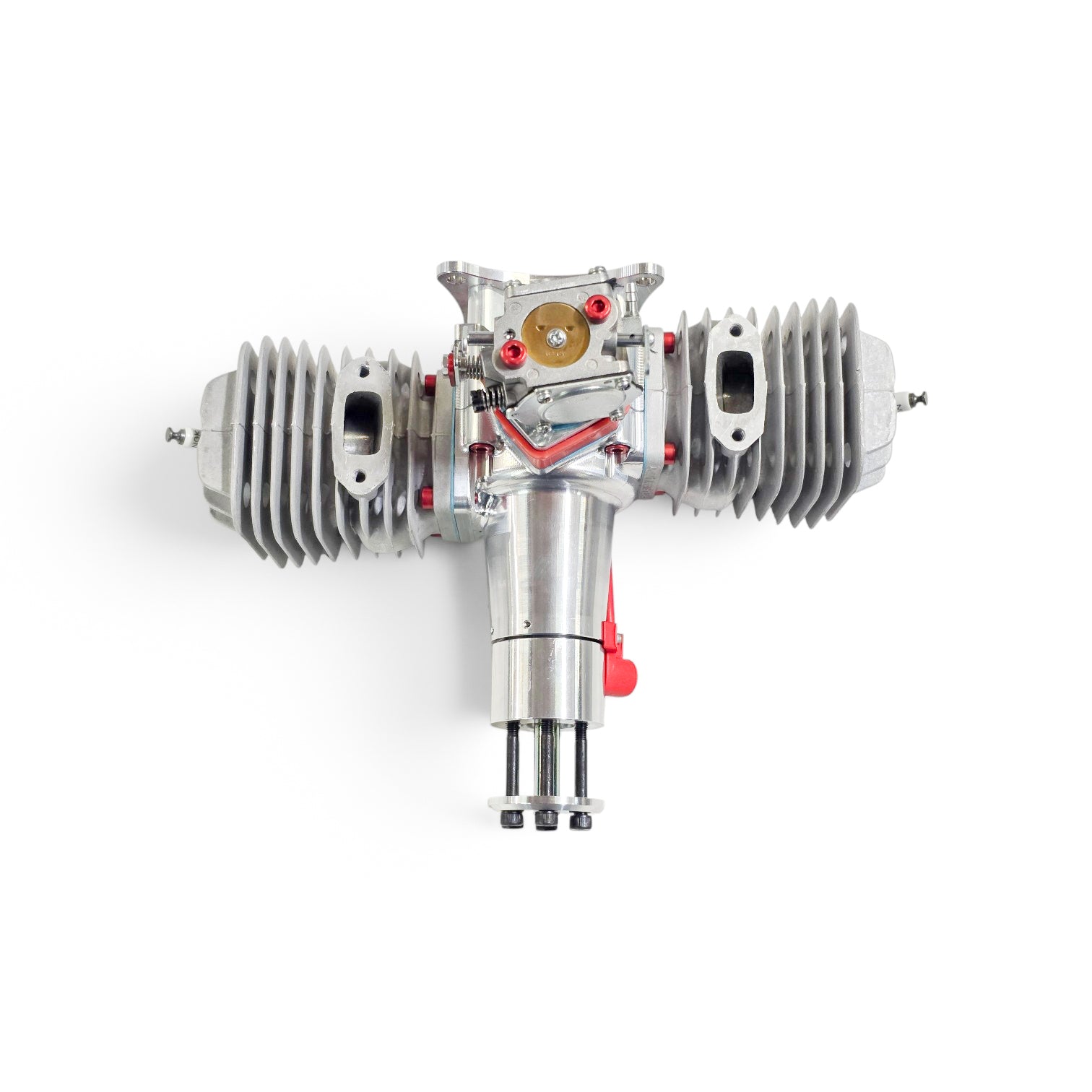

DA-100L

$ 999.00

Sold Out

At this time we are only offering standard ground shipping for website orders to the USA only.
All OTHER COUNTRIES please contact us for rates.
For faster USA shipping options, give us a call at 520-722-0607.

The well proven original DA-100 now even lighter and stronger !

We couldn't resist adding some new features like a new reed cage, reed valve and a lighter crankcase to our 100cc engine. The result: The DA-100L is lighter, an improved midrange, and more power.



Click here for parts

Click here for 3 View ( old style 100 )

Click here for 3 View ( 100 L )

Instruction Manual



Specifications

  • Displacement: 6.10 ci (100 cc)
  • Output: 9.8 hp
  • Weight: 5.57 lbs (2.53 kilos)
  • Bore: 1.6771 in (42.6 mm)
  • Stroke: 1.3779 in (35 mm)
  • Length: 6.5 in (162.5 mm)
  • Typical RPM Range: 1,100 to 6,800
  • Fuel Consumption: 2.5 oz/min @ 6,000 RPM
  • Warranty: Three year
  • Bolt Circle: 29mm
  • Prop Bolt: (6) 5mm

Features

  • Three crank bearings with long spacing between front bearings.
  • Four petal reed valve, bottom induction.
  • Desert Aircraft, auto advance, electronic ignition.
  • Walbro Carburator
  • Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
  • CNC milled, 7075 aluminum alloy crankcase.
  • Low vibration.
  • Long rod to stroke ratio.
  • Aerobatic power curve.

Recommended Props

2-Blades

3-Blades

28x10 26x12n
27x10 26x12
28x10 25x12N
26x12 24x12W
